Descriptions:
Speed Tang PriMER FPGA 25K GW5A FPGA Development Board, 64Mbits Linux RISCV single board computer, with MIPI 2.5Gbps ethernet PMOD port for FPGA education, support SDRAM HDMI camera module (basic dock).
Specifications:

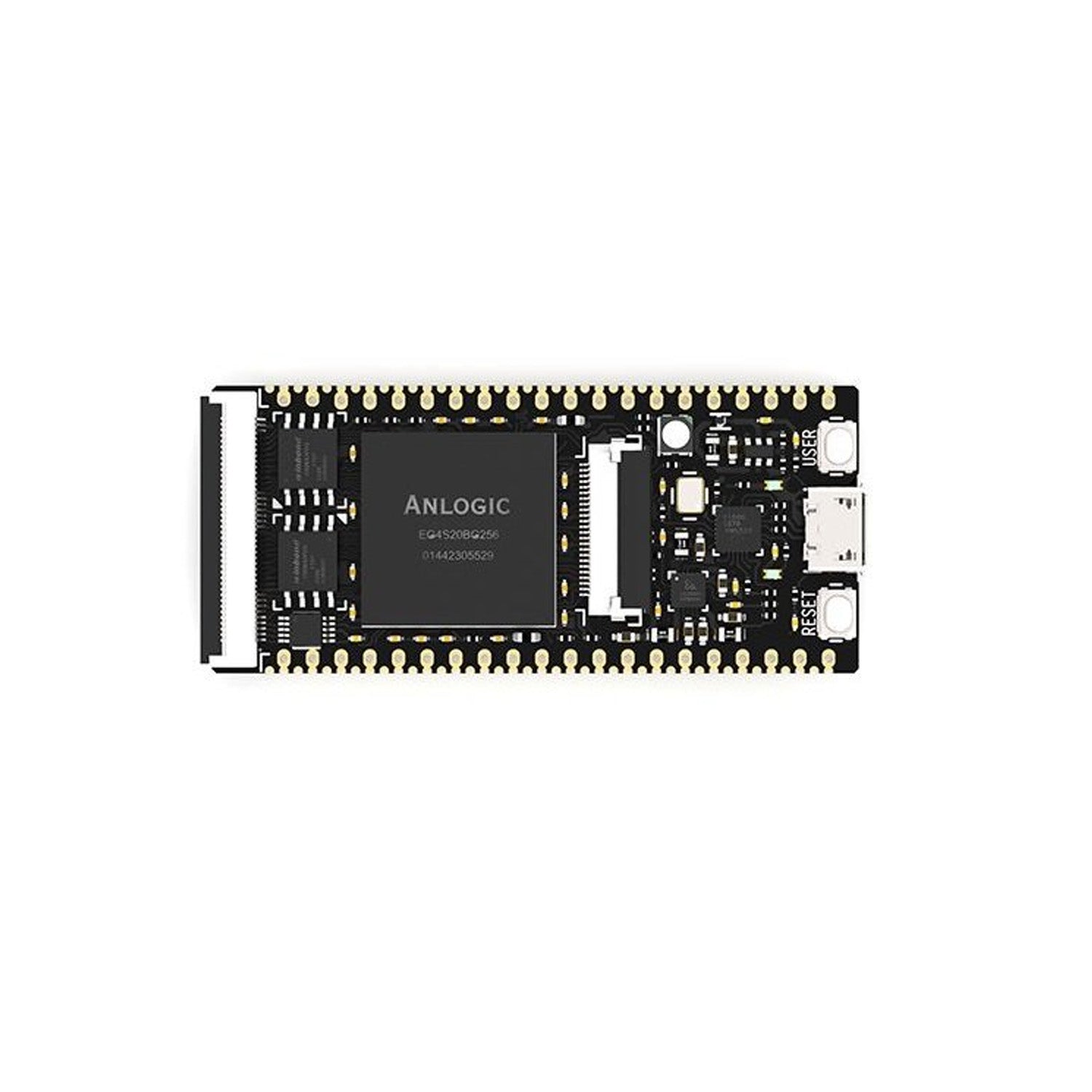

- Core Unit: Analogic Technologies EG4S20
- Logical Unit: 20K (LUT4/LUT5 Hybrid Architecture)
- SRAM: About 130KB
- SDRAM: Built-in 32Bit Bit Width 64MBit
- Flash: FPGA Configuration Flash, 8Mbit User Flash, Nor/And Optional
Features:
Interface:
- FPC40P socket can be connected to RGB LCD, the VGA adapter board
- FPC24P socket can be connected to DVP camera, high-speed ADC module
- Resistive touch screen controller for I2C interface, used with RGB LCD

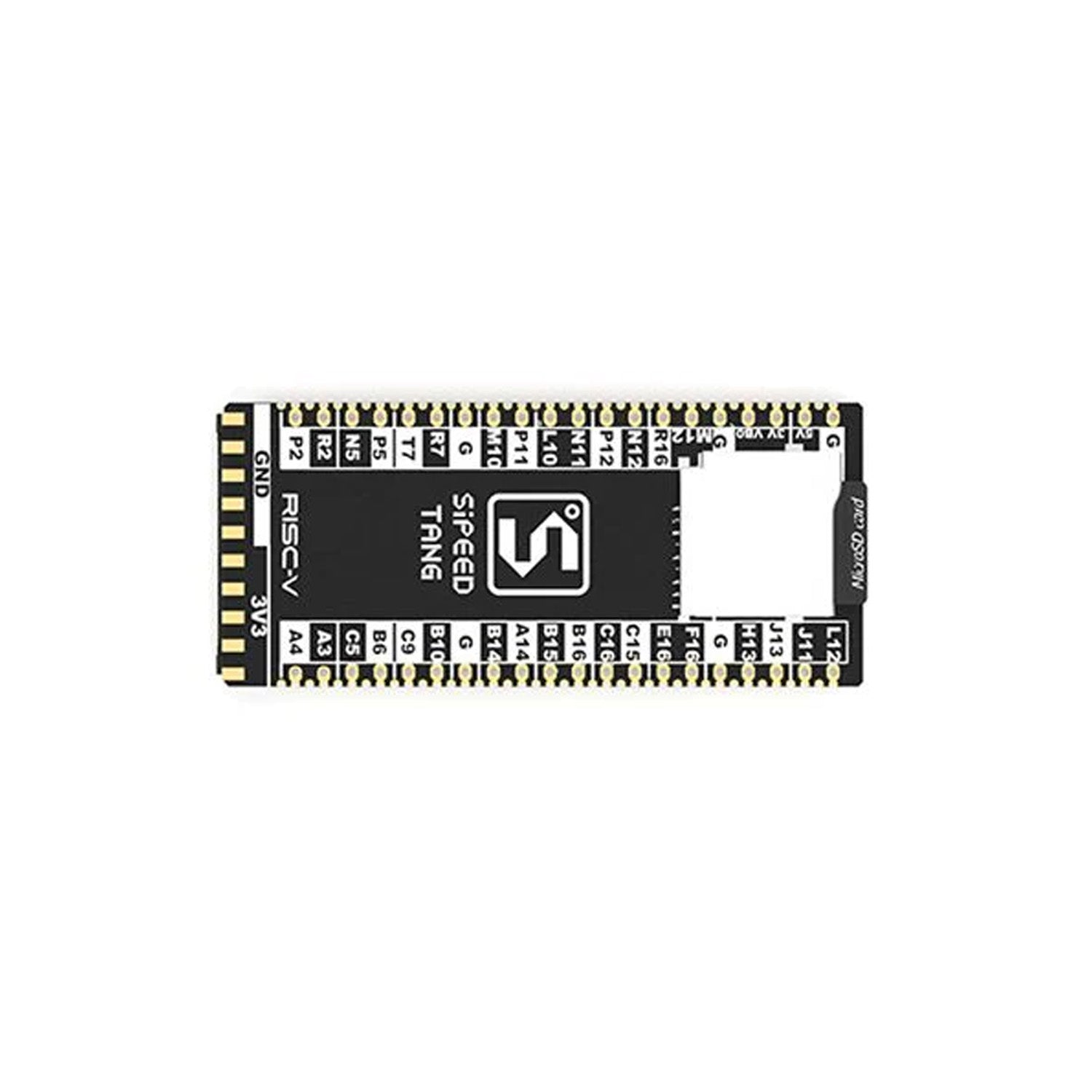

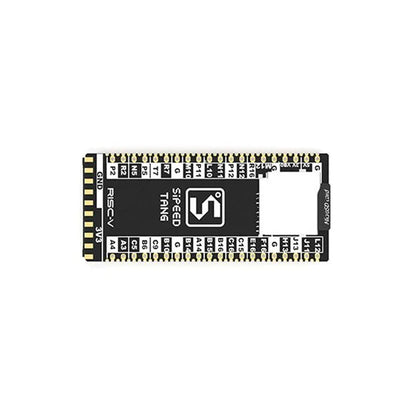

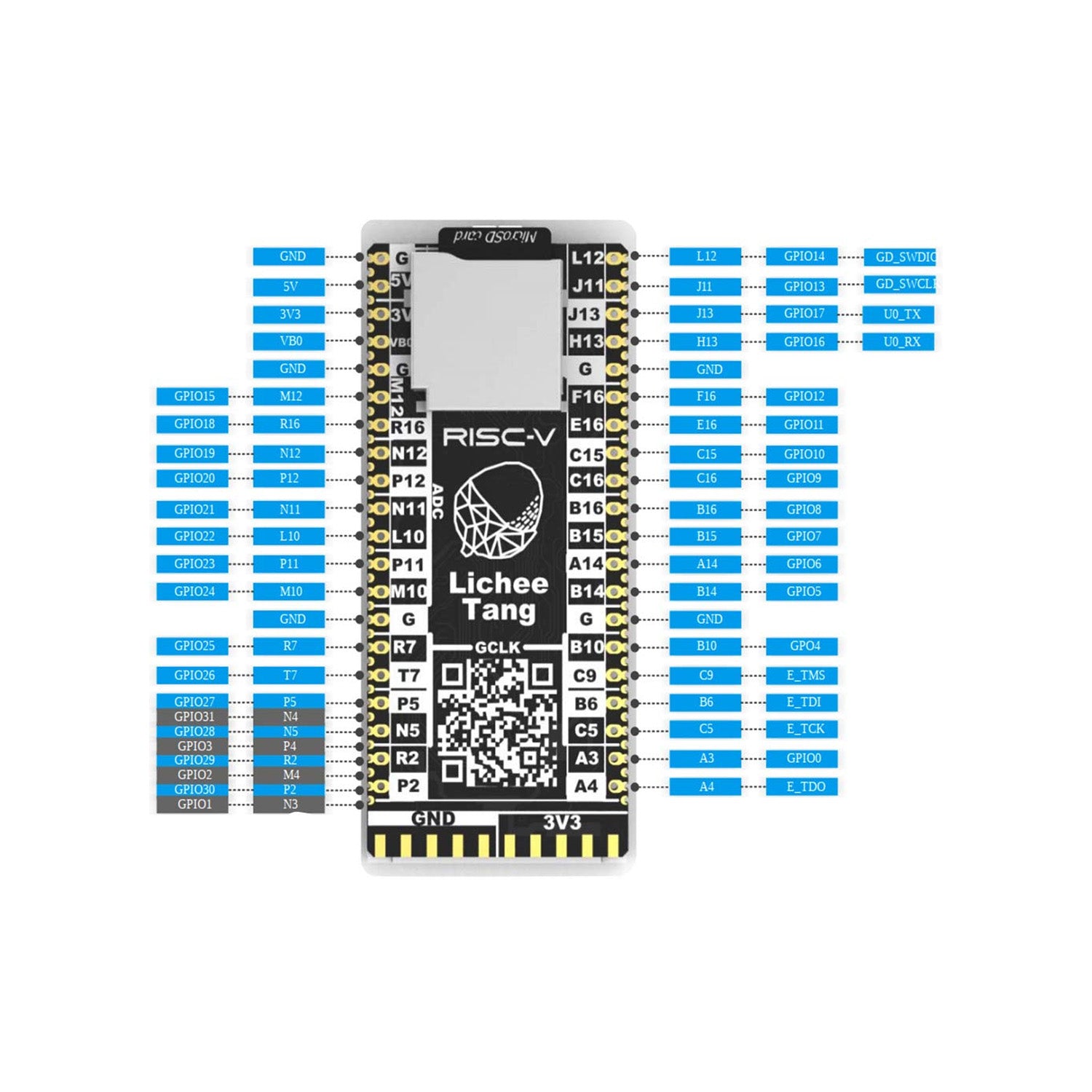

Pin and lead:
- The adjacent pins LVDS are drawn in the same length, leading out 8 GCLKs, and all 8 ADCs are taken out.
- Double row pin spacing 900mil, compatible with breadboard development
- The half-hole leads to an extra 40 IO, and the whole board leads to 130+ IO
Electrical characteristics:
- Micro USB 5V power supply; 2.54mm pin
- 3.3V~5V power supply; 1.27mm stamp hole power supply
- 3-channel DCDC power supply chip, stable and efficient power supply
- independent adjustment of Bank0 IO level
Applications:
- Machine vision processing
- Parallel computing acceleration
- High-speed communication interface interconnection
- Learning, debugging, and researching soft cores such as RISC-V
Package Included:

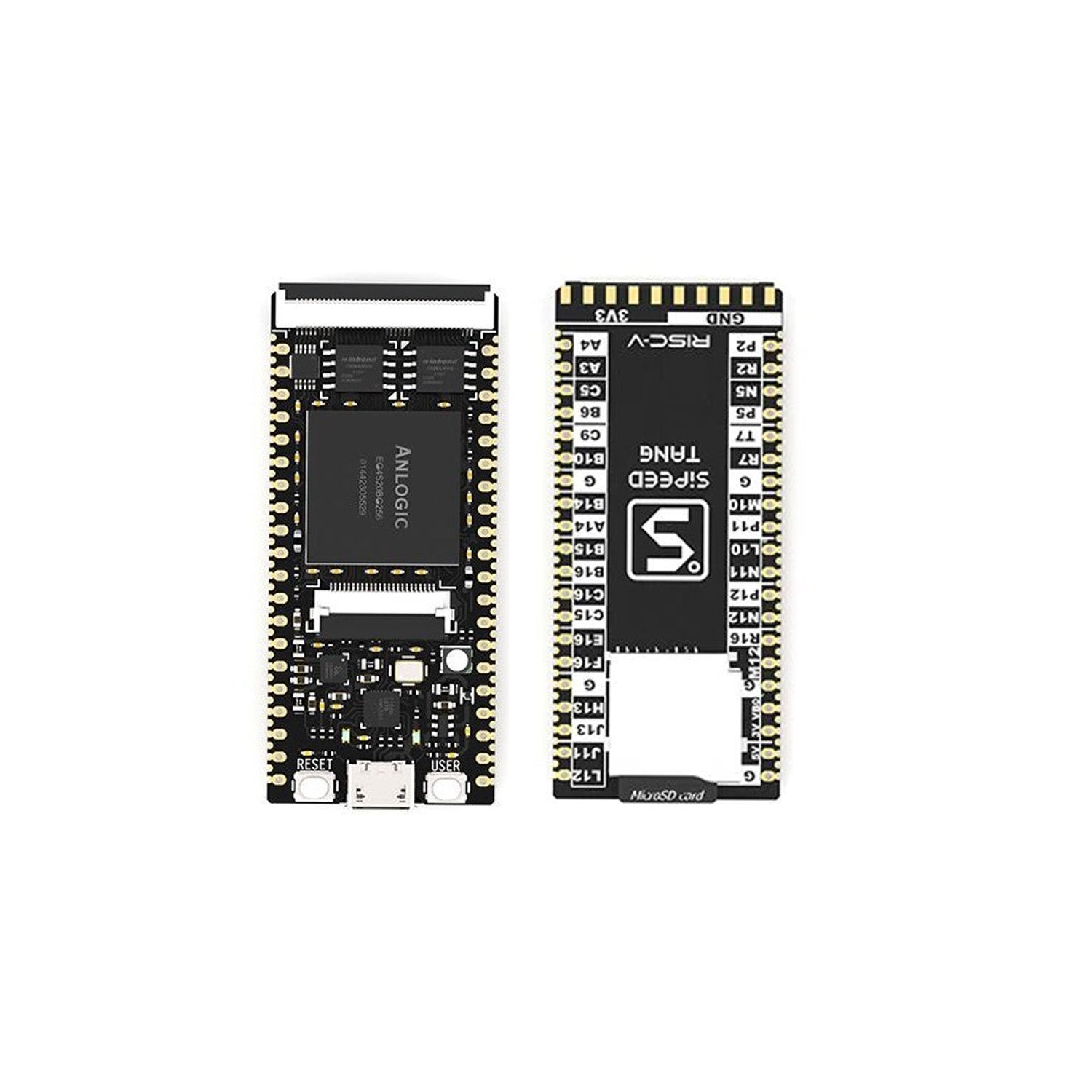

1 x Sipeed Tang PriMER FPGA Development Board Anlogic EG4S20 FPGA With RISC-V Core Affordable FPGA Development Board Compact Form Factor For Easy Projects Onboard Flash Memory For Storage USB-C Connectivity For Easy Programming
