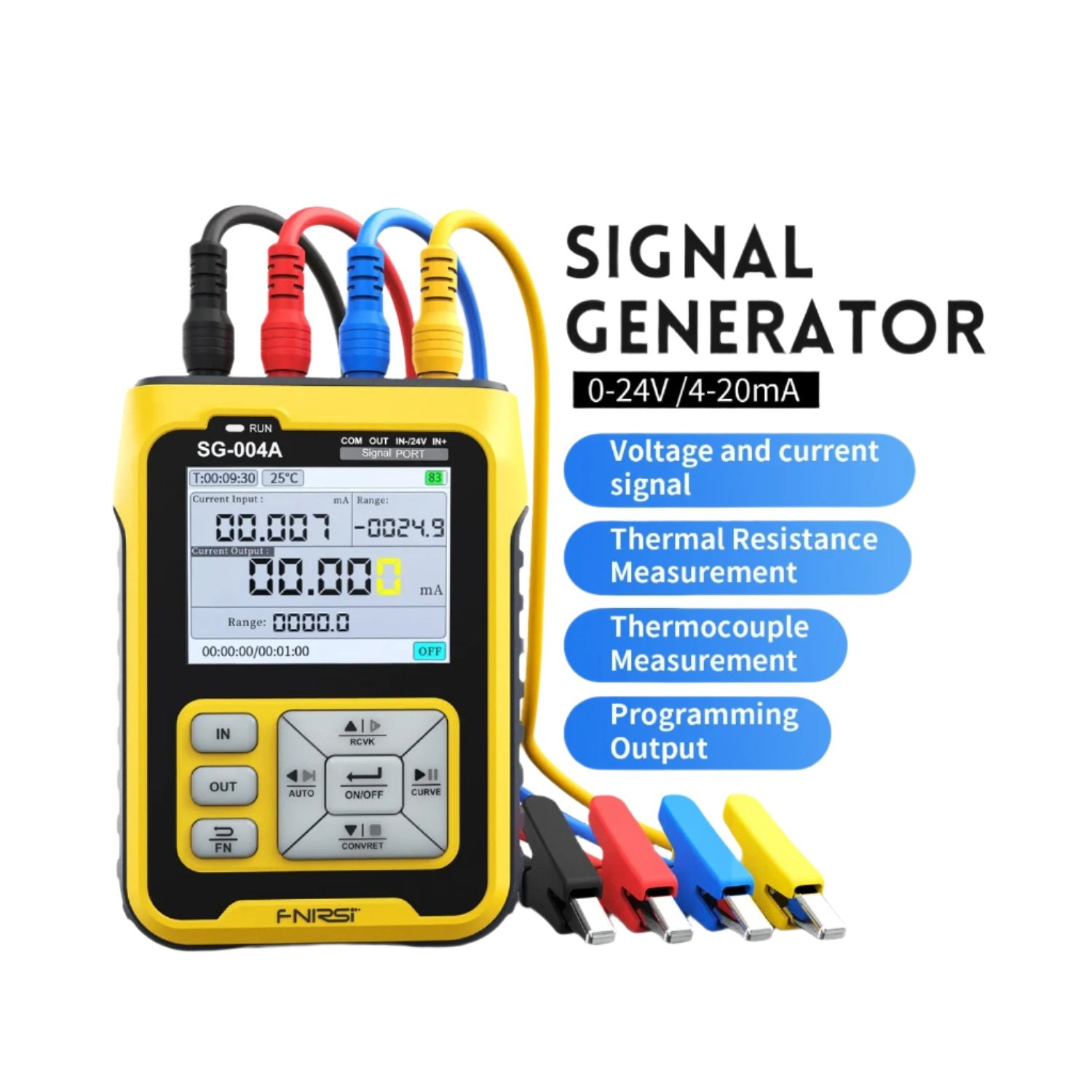

Description:
The SG-004 signal generator is suitable for a variety of working conditions, and can perform PLC system debugging, DSC system debugging simulation, valve positioner adjustment, instrument testing and calibration, and inverter testing.
Real-time curve display, you can display the change trend of input and output signals through the curve, can record up to 100,000 or 15 sets of data, the frequency of input and output is 0-9999HZ, 0.2% high-precision test. High-definition color screen backlight display, 2.4-inch TFT-LCD, with backlight for clear reading, the color of the button backlight will be different in different modes

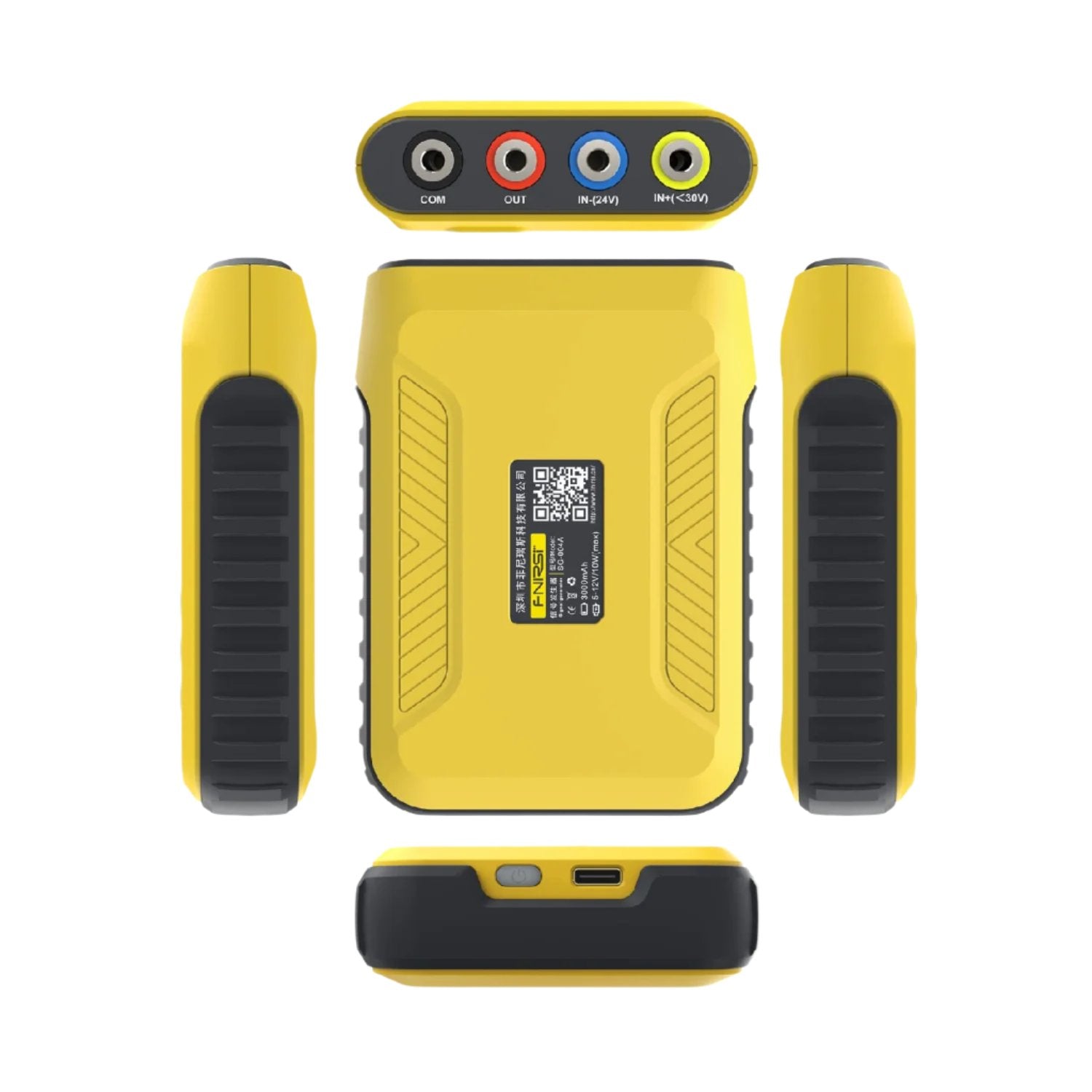

Only the size of a palm, light and portable, you can put it in your backpack at any time, long-term standby power, built-in 3000mah lithium battery, can stand by for a long time for 24 hours, the top right of the screen can display the remaining power, suitable for Type C The charging port is convenient to carry out. The fuselage is made of ABS hard shell, and the product is surrounded by an integrated non-slip silicone, so the product is not easy to be broken
Specifications:
- Signal Types: 0-10V, 4-20mA, PT100, Thermocouple, Resistance, Pressure Transmitter
- Compact Design: Portable and easy to carry
- Applications: PLC and DCS system debugging, valves positioner adjustment, inverter detection, and more.
Features:
-
Programming automatic lifting output
-
history viewing
-
Preset output
-
Signal linear conversion output
-
Real-time curve
-
Output timing
-
USB analog serial communication
- USB analog USB flash drive firmware upgrade

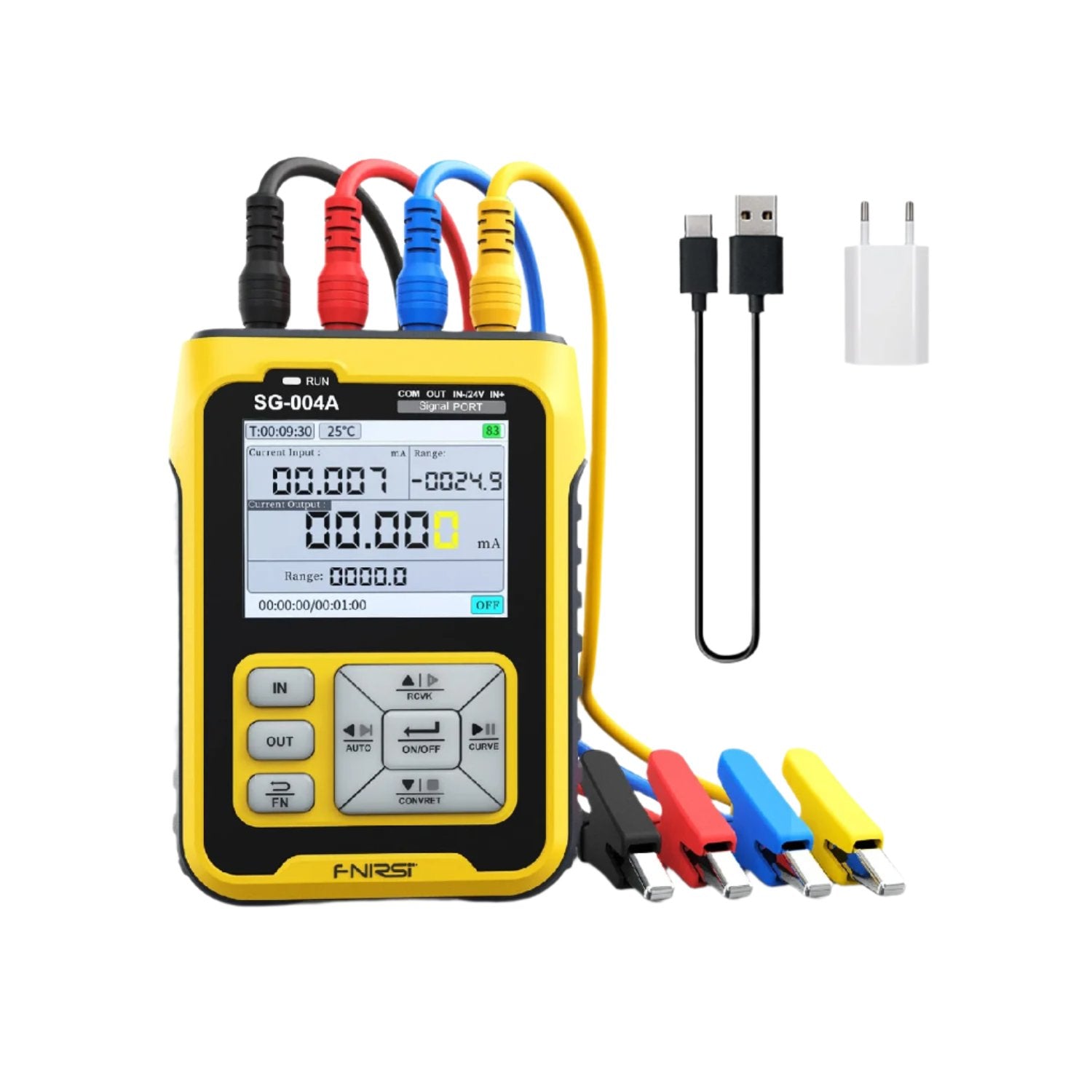

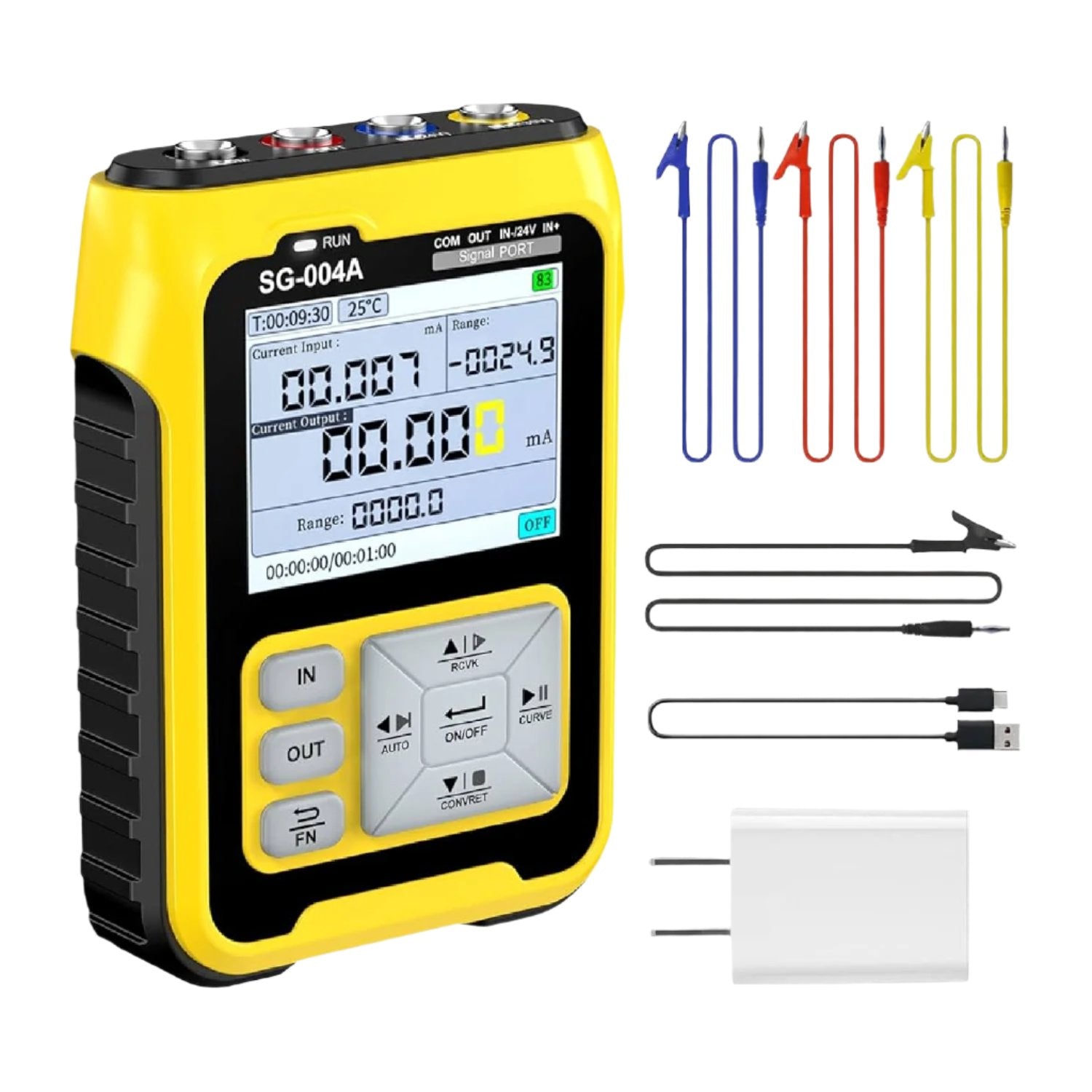

Package Included:
1 x FNIRSI SG-004 Multifunctional Signal Generator Calibrator
1x USB charger
4 x Test Clips
1 x Type-C Charging Cable
1 x Packing Box
1 x User Manual
