Description:
The PWM Signal Generator Process Calibrator is small in size, has many functions, easy to operate, and is easy to carry. The key layout is reasonable, all functions have independent corresponding keys, easy to operate. Built-in battery, low power consumption, long standby time.
The output has a custom function, the upper and lower output limits can be set arbitrarily. Voltage input diagram, current input diagram, the frame rate is 10 frames. PWM output can set frequency and duty cycle respectively.
Real-time observation of changes in voltage and current. It is powered by a large-capacity lithium battery and is charged with a C-type interface (5V). The capacity of the lithium battery is 3000mHA, Super long working hours.

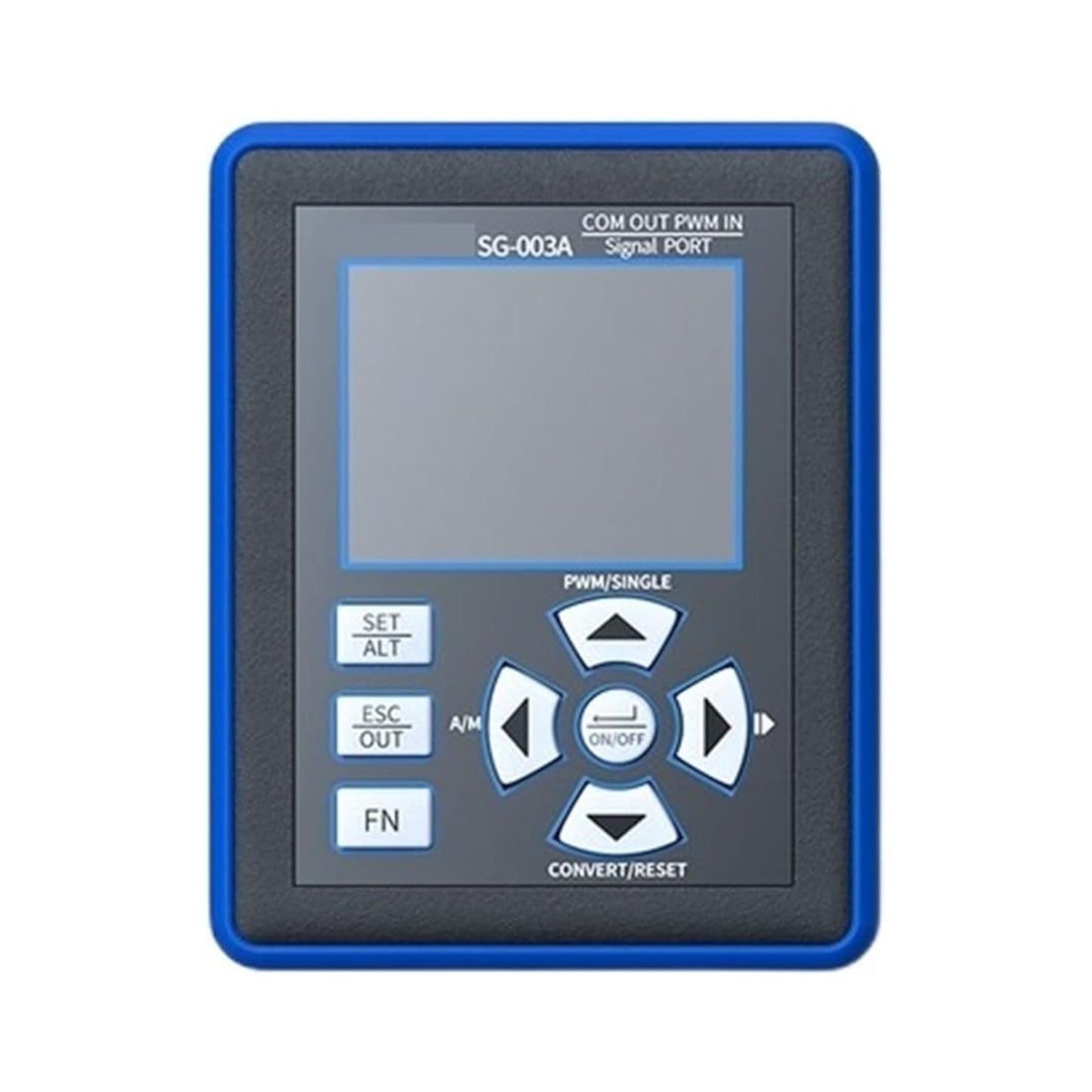

The high-definition TFT colour LCD screen makes the reading more eye-catching. The resolution is 240*320. Low power consumption and maximum power consumption 0.32W.
Specifications:

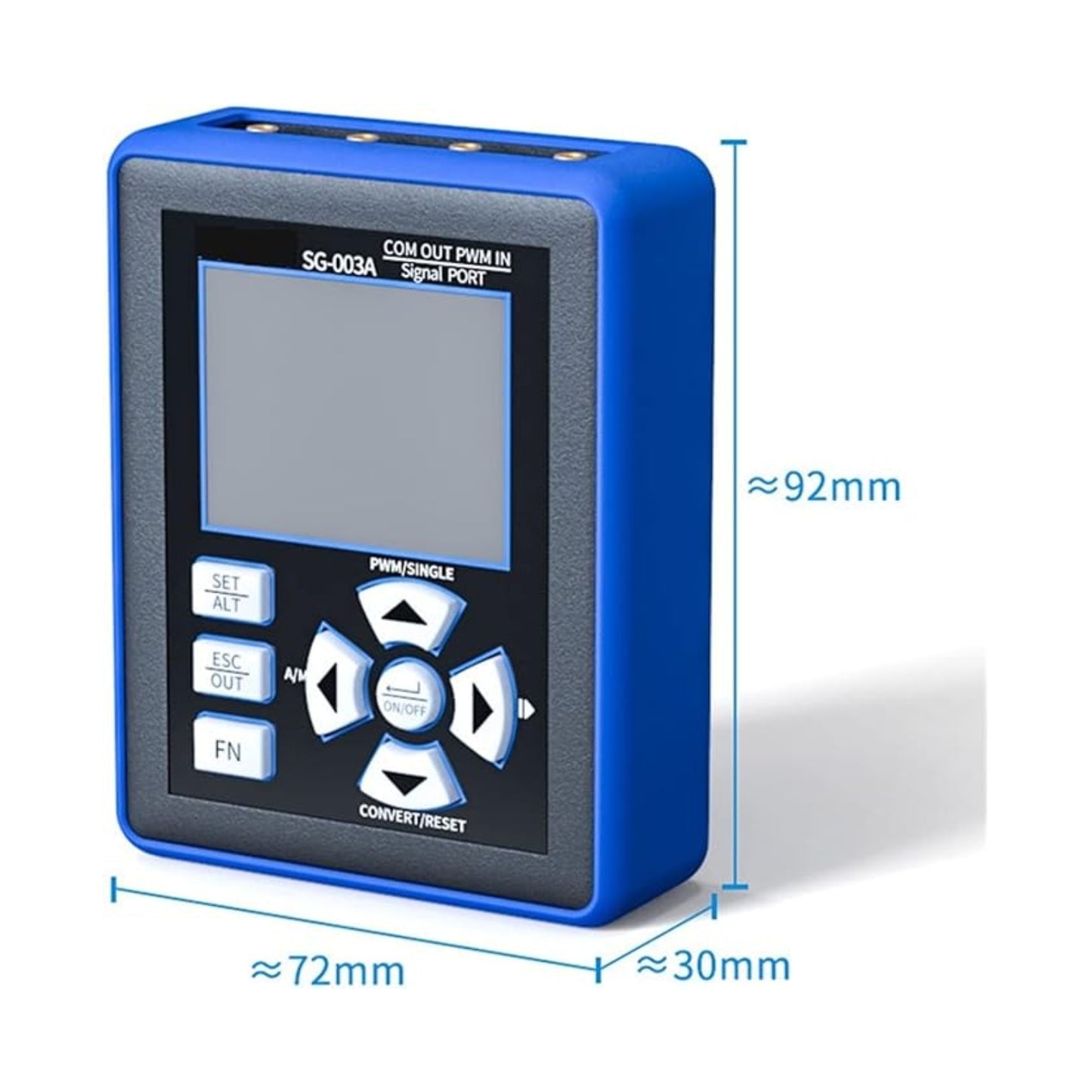

- Model: SG-003A
- Material: Plastic
- Active/Passive current output range: 0~24mA
- Voltage Output: Range: 0 to 2V
- Resolution: 0.01mA
- Current Input Measurement Range: 0-24mA
- Input Impedance: 100Ω
- Voltage Input Measurement Range: 0-30V
- Operating Environment: 0-50°C
Features:
- Expect the conventional signal input and output functions
-
Voltage and current have automatic output functions, it can choose a single rise, three modes of single drop, and cycle.
-
With input-to-output conversion, voltage conversion active current mode, passive mode, and current conversion voltage mode.
-
The output has a custom function, the upper and lower output limits can be set arbitrarily.
-
Voltage input diagram, current input diagram, the frame rate is 10 frames.
-
PWM output can set frequency and duty cycle respectively.
- Real-time curve: Real-time observation of changes in voltage and current

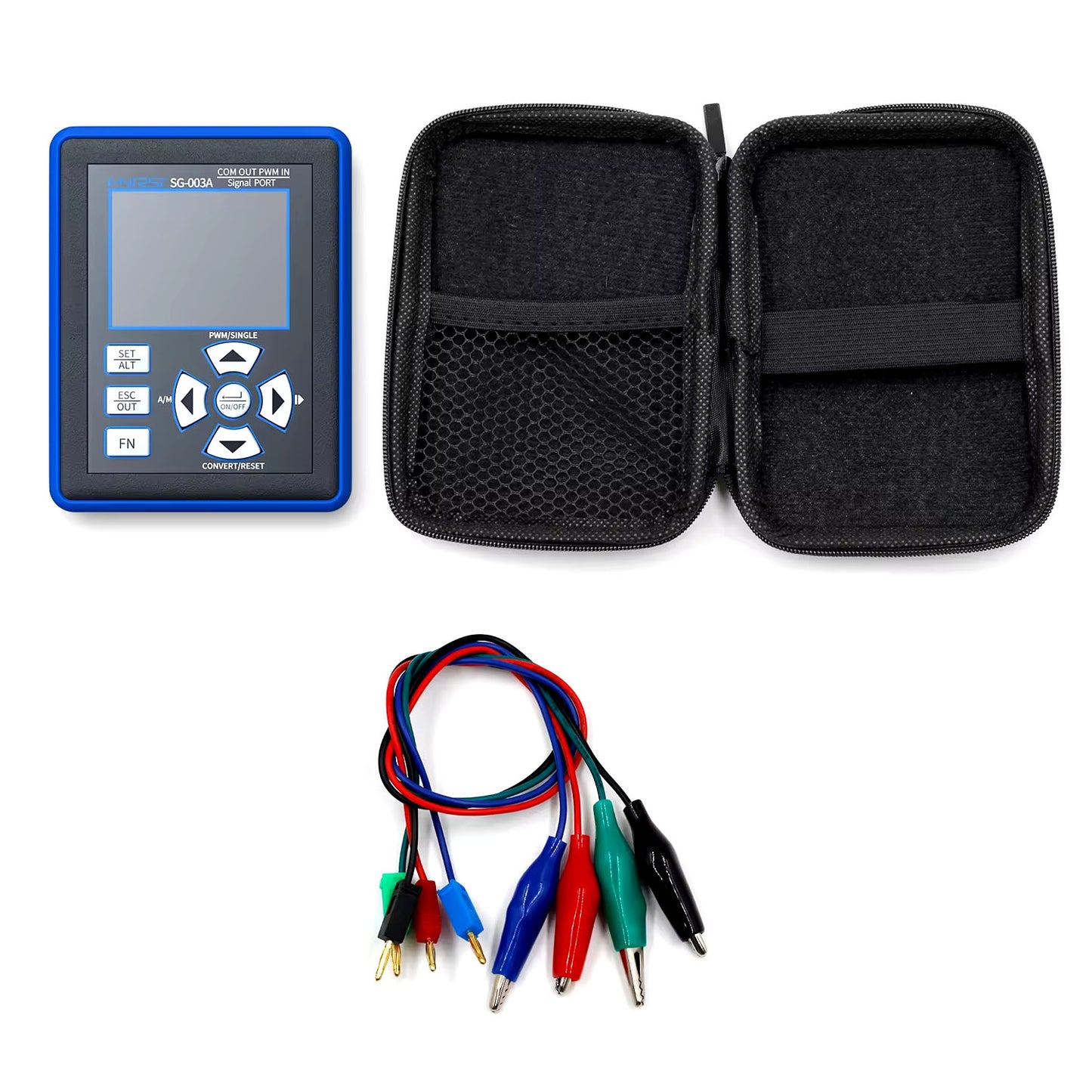

Package Included:
1 x SG-003A PWM Signal Generator Process Calibrator Handheld Process Calibrator Multifunction Portable Analog Signal Source Voltage Current Calibration Testing Measurement Equipment With 0-20mA/0-10V Analog Output
