Description:

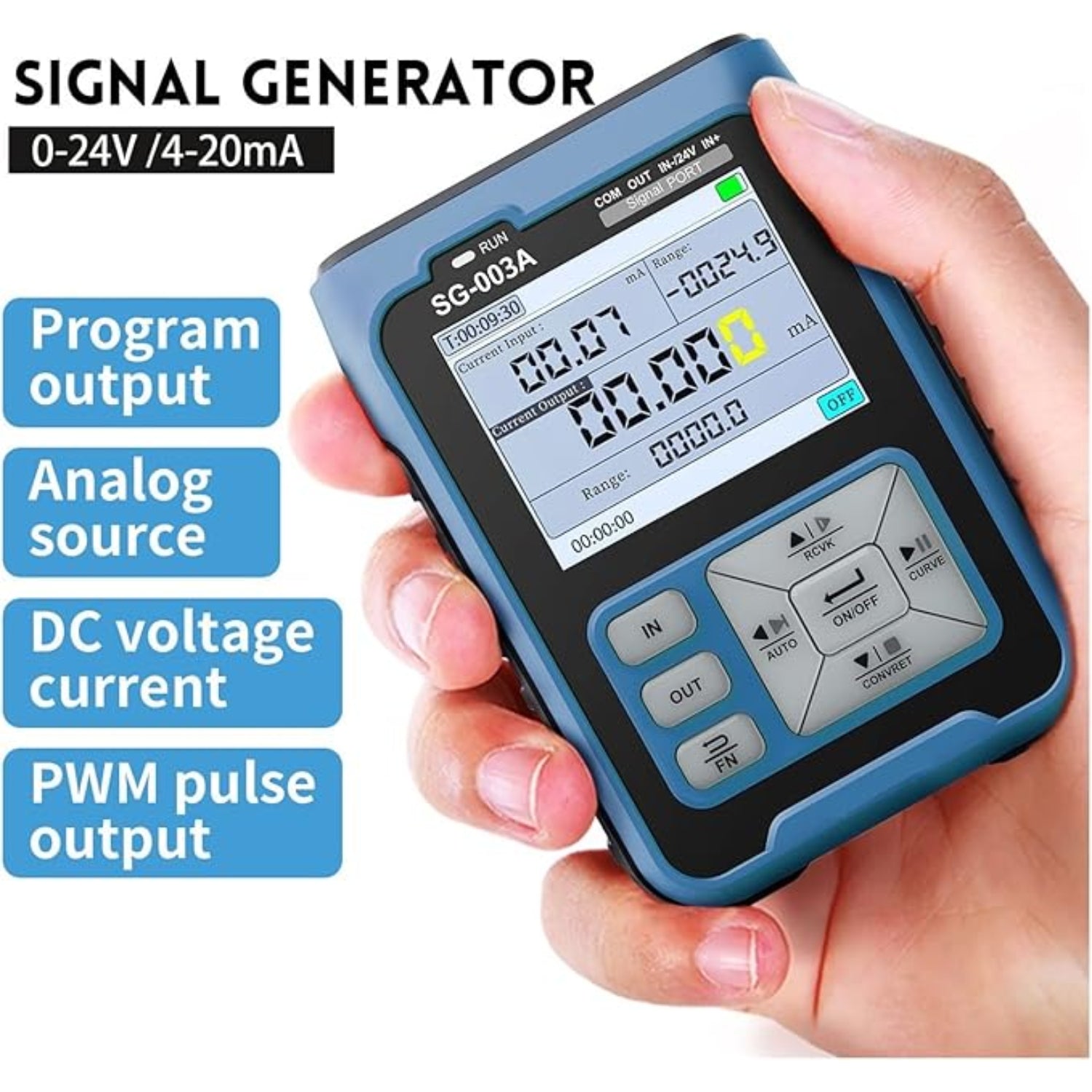

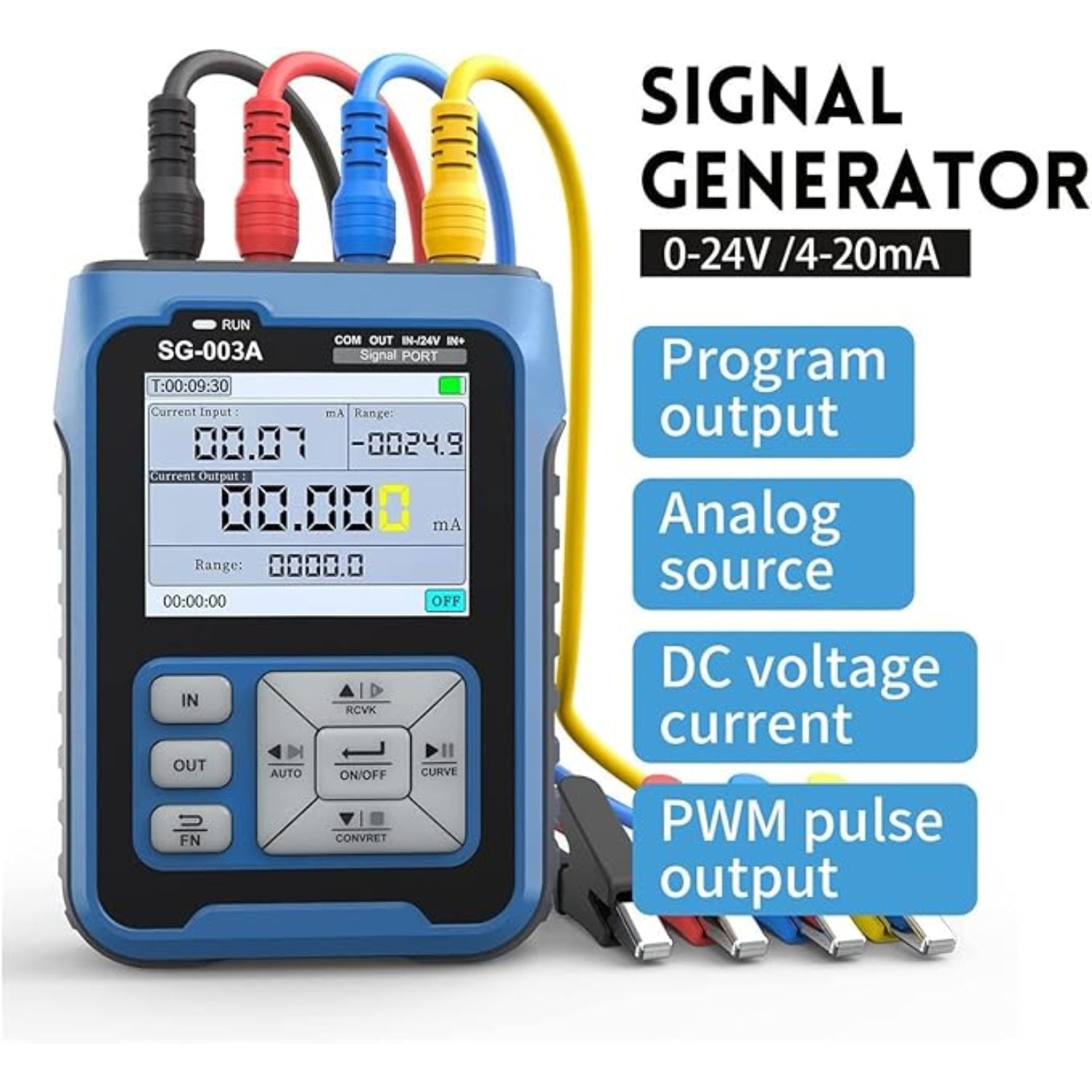

The SG-003A signal generator supports multiple signals including 0-24mA current, 0-24V voltage, XMT passive current, and Hz pulse. This versatility ensures you have the right signal for various professional applications.
SG-003A features 4 groups of preset signal values for fast adjustments. It also converts input signals into different output types, making it a highly practical and reliable tool for professionals across different fields. A real-time curve set the sampling time for the curve the simulator adjusts the display curve automatically within a set range.
Specifications:
- Model: SG-003A
- Material: Metal
- Colour: Blue
![]()
Features:
- Expect the conventional signal input and output functions.
- Voltage and current have automatic output functions, it can choose a single rise, three modes of a single drop, and cycle.
- With input-to-output conversion, voltage conversion active current mode, passive mode, and current conversion voltage mode.
- The output has a custom function, the upper and lower output limits can be set arbitrarily.
- Voltage input diagram, current input diagram, the frame rate is 10 frames
- PWM output can set frequency and duty cycle respectively.
- Real-time curve: Real-time observation of changes in voltage and current.
- It is powered by a large-capacity lithium battery and is charged with a Type-C interface. (5V)
- The capacity of the lithium battery is 3000mHA, super long working hours.

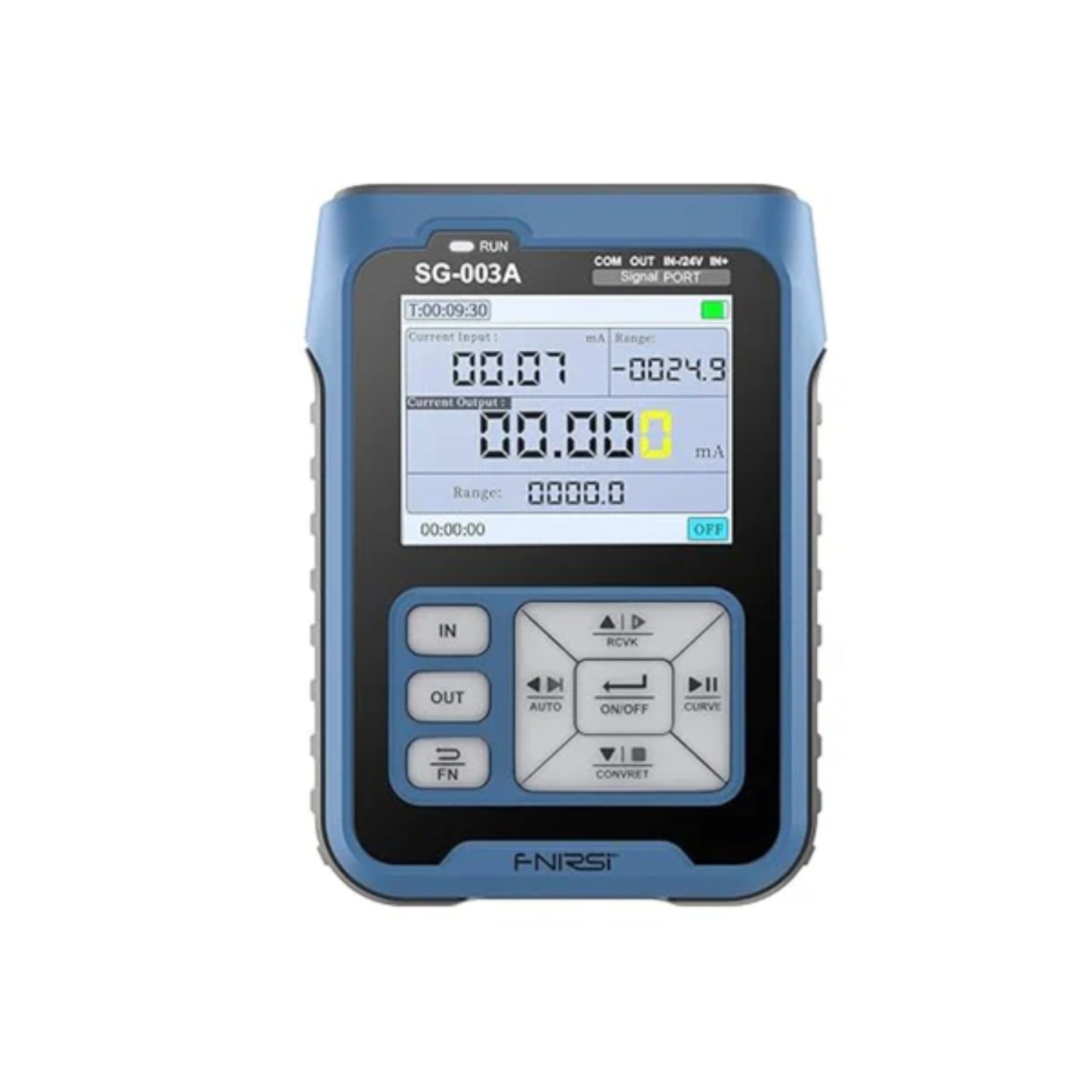

- The high-definition TFT colour LCD screen makes the reading more eye-catching.
- The resolution is 240*320, with low power consumption, and a maximum power consumption of 0.32W
Caution:
- Please read the manual carefully before use to have a better understanding of the signal generator.
- Plug the meter into the PC, and turn it on. Wait for the PC to recognize the USB drive named "Bootloader".
- The limit voltage of the input terminal can't be greater than 30Vpp, otherwise the over limit will damage the equipment.
- Don't use the instrument in a flammable and explosive environment Used batteries for instrument replacement and discarded instruments cannot be disposed of with household waste. Please handle following relevant national or local laws and regulations.
Package Included:

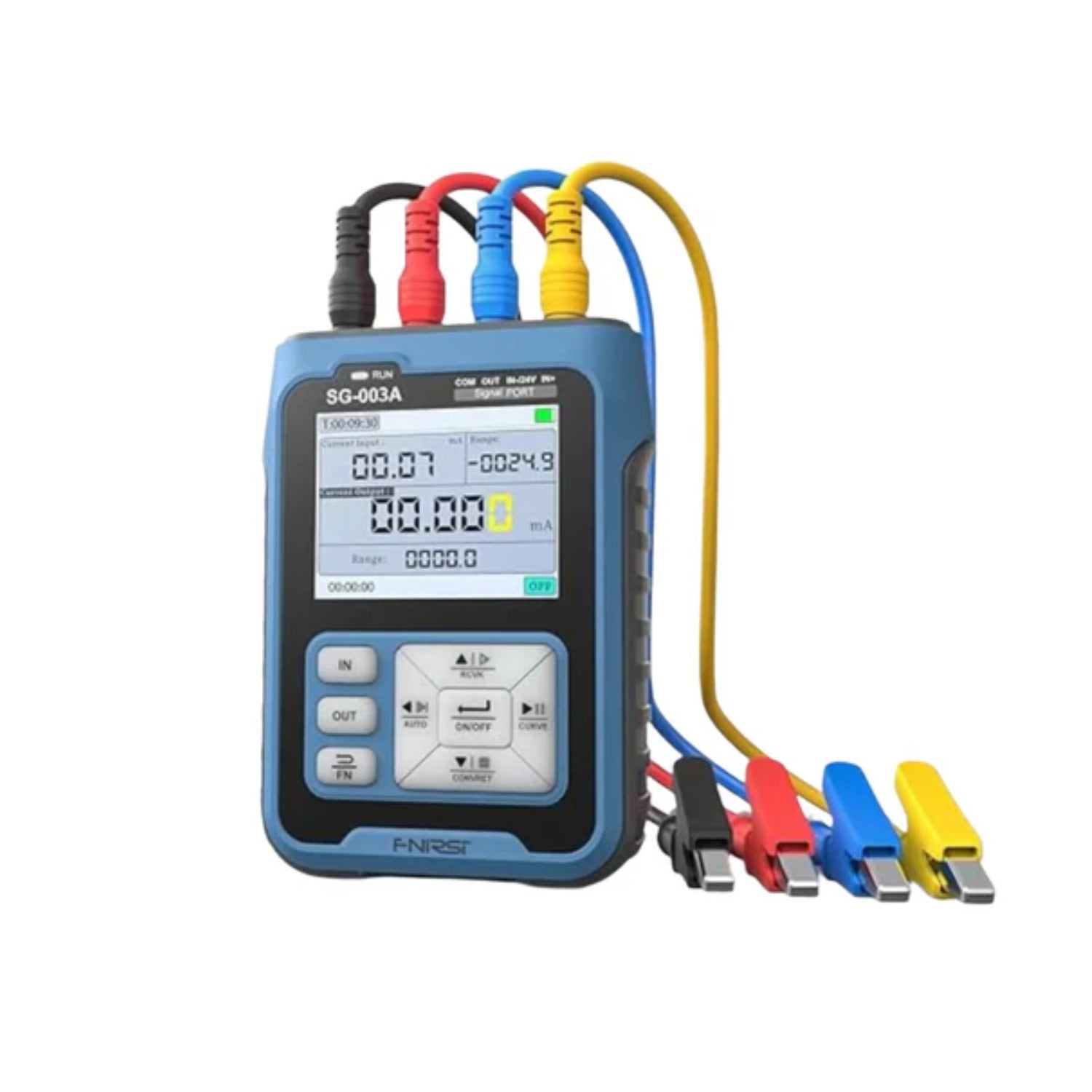

1 x SG-003A Handheld Multifunction Signal Generator High Accuracy 4-20mA Signal Source and Calibrator For Voltage and Current Analog Process Control
