Description:
The Raspberry Pi Debug Probe offers an affordable, all-in-one debugging solution. This USB kit provides all the necessary hardware and cables for easy, solderless, plug-and-play use, ideal for your Raspberry Pi Pico and other compatible boards.
Program and debug your Pico and RP2040 effortlessly. This probe is fully compatible with Windows, Mac, and Linux operating systems, providing a consistent development experience.
The Debug Probe integrates a processor serial debug interface (defaulting to ARM SWD) and a standard UART interface. Based on Raspberry Pi Pico hardware, it runs the open-source Raspberry Pi Picoprobe software, providing essential debugging tools.
Firmware updates are managed similarly to those on a Raspberry Pi Pico, making it straightforward to install the latest Picoprobe firmware or load custom versions.

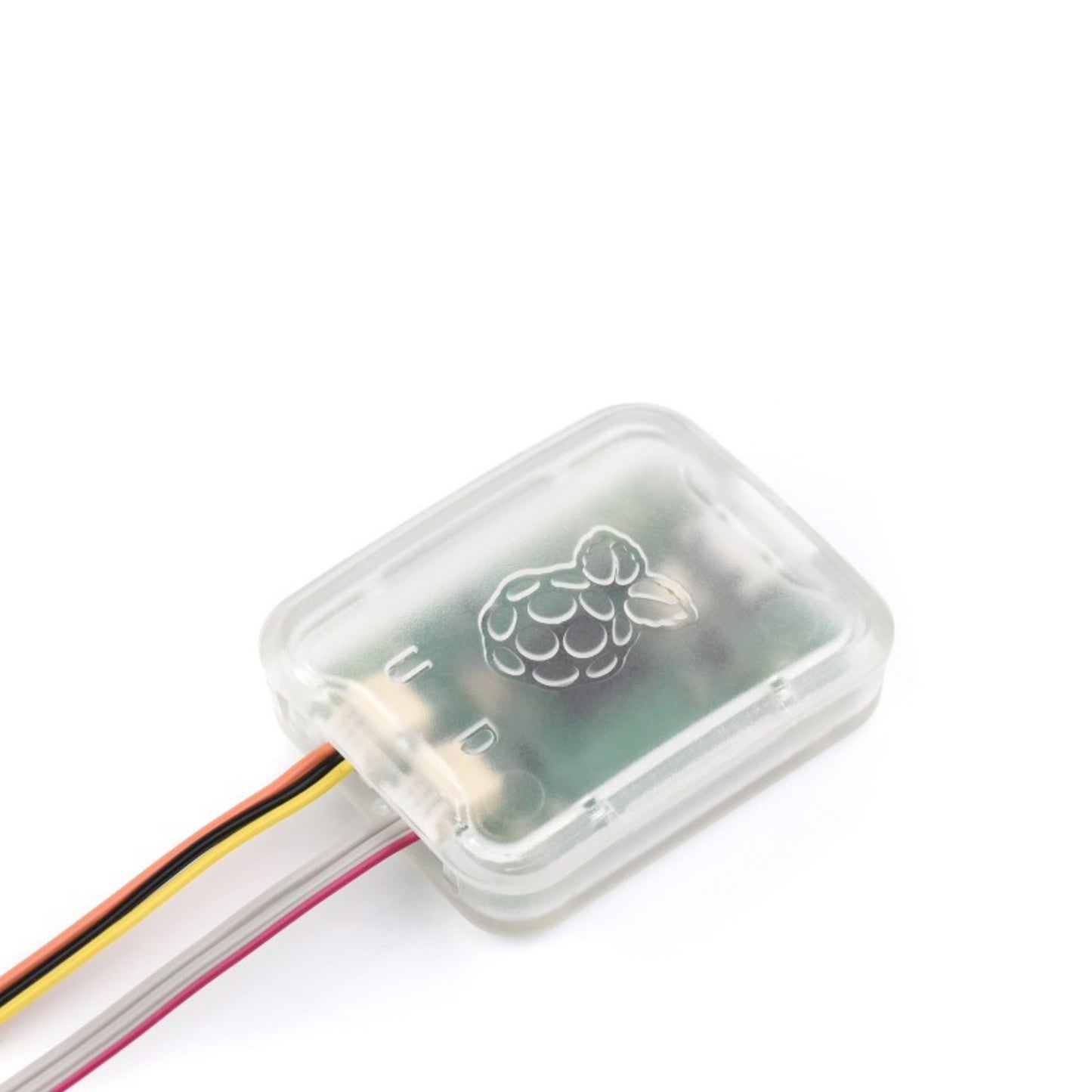

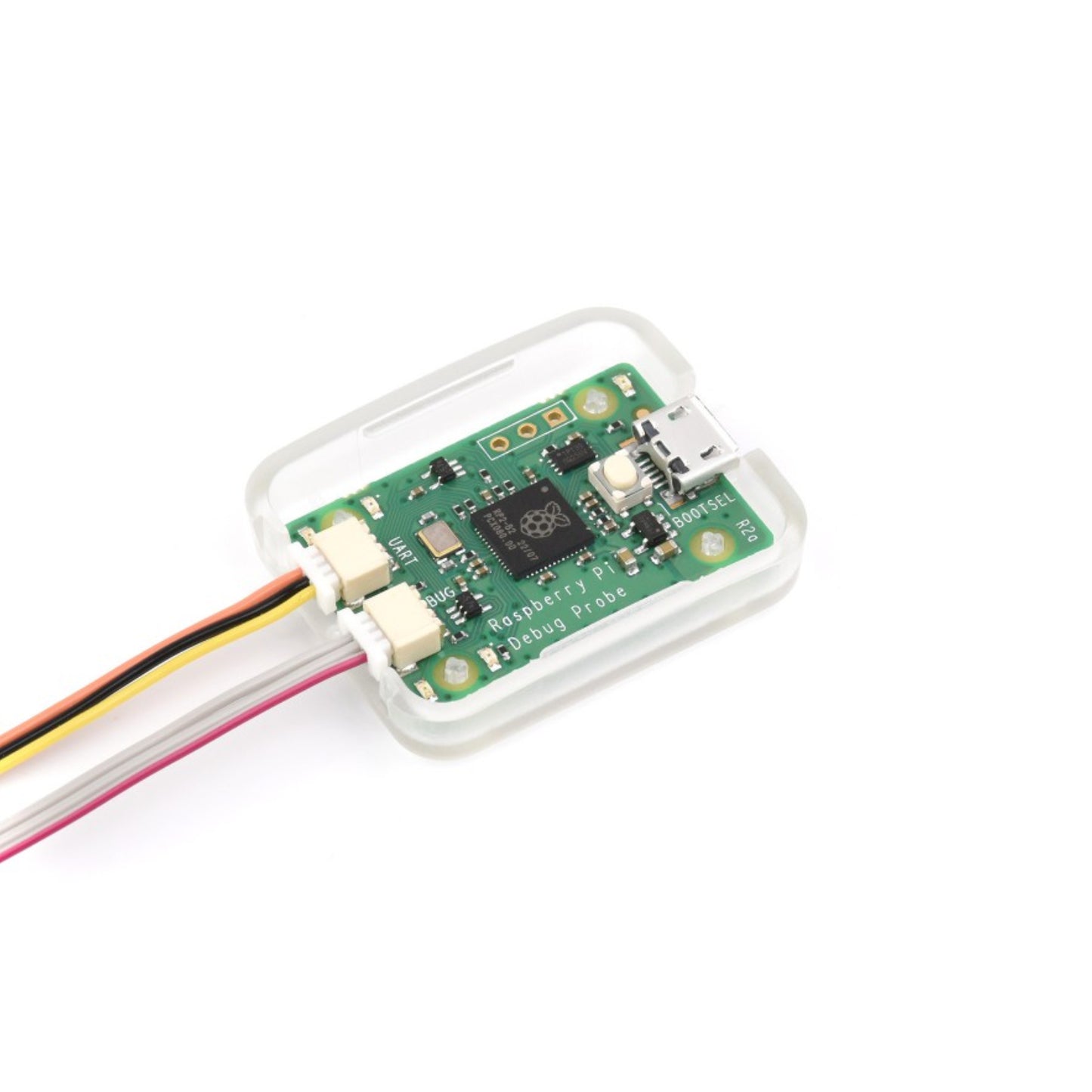

The Debug Probe comes with a neat, clear case, three essential JST-SH debug cables, and a Micro-USB cable. For quick and easy debugging of your Pico projects, the 3-pin JST-SH connectors on these cables are a perfect match for the Raspberry Pi Pico H.
Beyond Raspberry Pi, this Debug Probe offers standard CMSIS-DAP debug and UART interfaces over USB. Use it to debug various development boards or as a simple, cost-effective USB-to-UART converter. It works flawlessly with OpenOCD and other CMSIS-DAP compatible tools.
Specifications:
- Form Factor: 22mm × 32mm
- Compatible with the CMSIS-DAP standard
- Includes a high-quality transparent plastic case
- Includes a USB cable and three debug cables: 3-pin JST connector to 3-pin JST connector cable; 3-pin JST connector to 0.1-inch header (female); 3-pin JST connector to 0.1-inch header (male)
- Nominal I/O Voltage: 3.3V
Features:

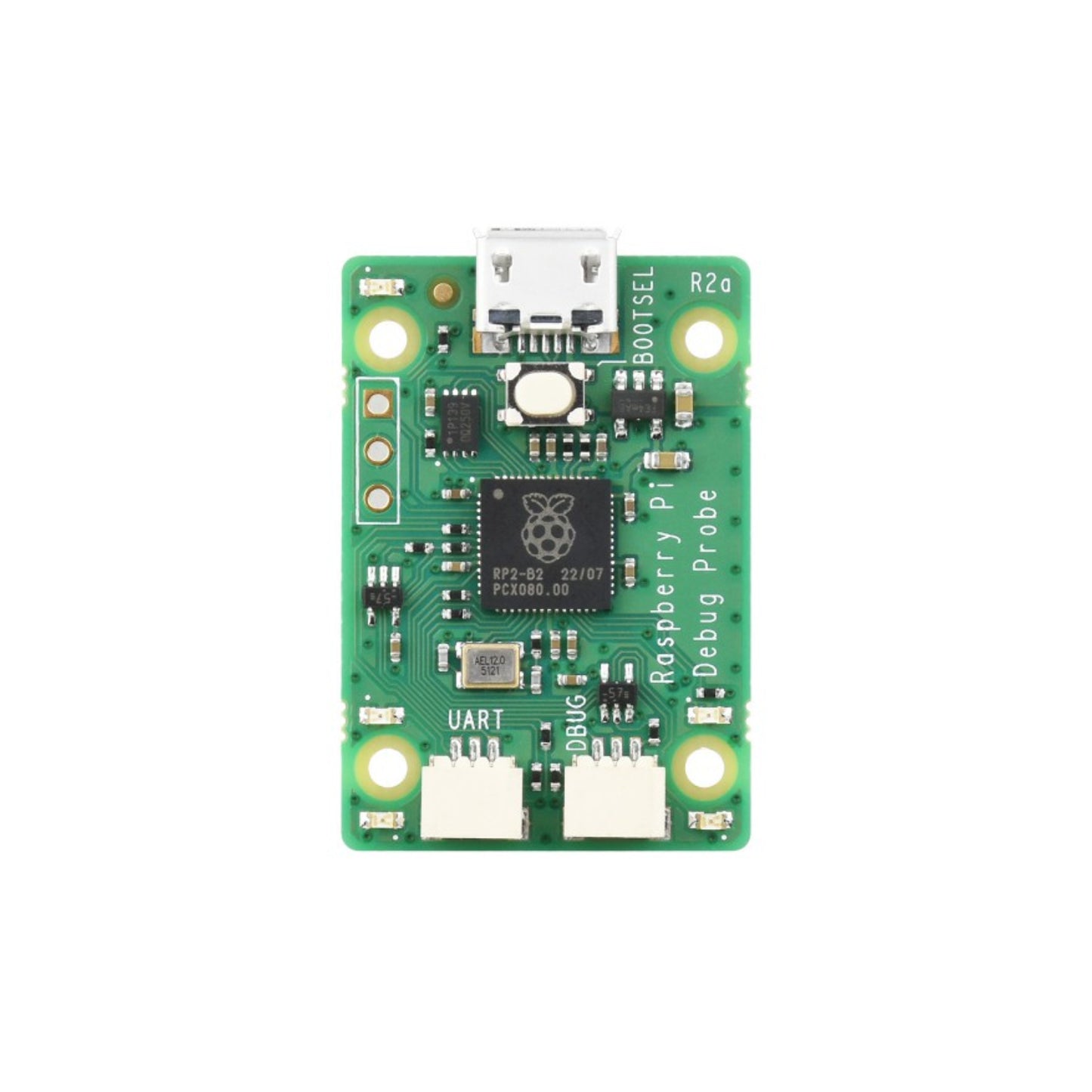

- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Onboard Micro-USB port for connecting to a PC or other motherboards
- Onboard 3PIN SWD interface for connecting to the target board
- Onboard 3PIN USB to UART bridge
- Standard CMSIS-DAP interface, compatible with most ARM-based microcontrollers
- Works with OpenOCD and other tools supporting CMSIS-DAP
- Follows the Raspberry Pi 3PIN Debug Connector Specification
- Comes with a high-quality transparent plastic case and connection cables
- Open-source programs are more convenient for upgrading the firmware
Pin Description:
Useful Links:
- Raspberry Pi Debug Probe documentation
- Raspberry Pi Debug Probe
- Debug Probe firmware update
- Raspberry Pi 3-pin Debug Connector Specification
- Product Brief

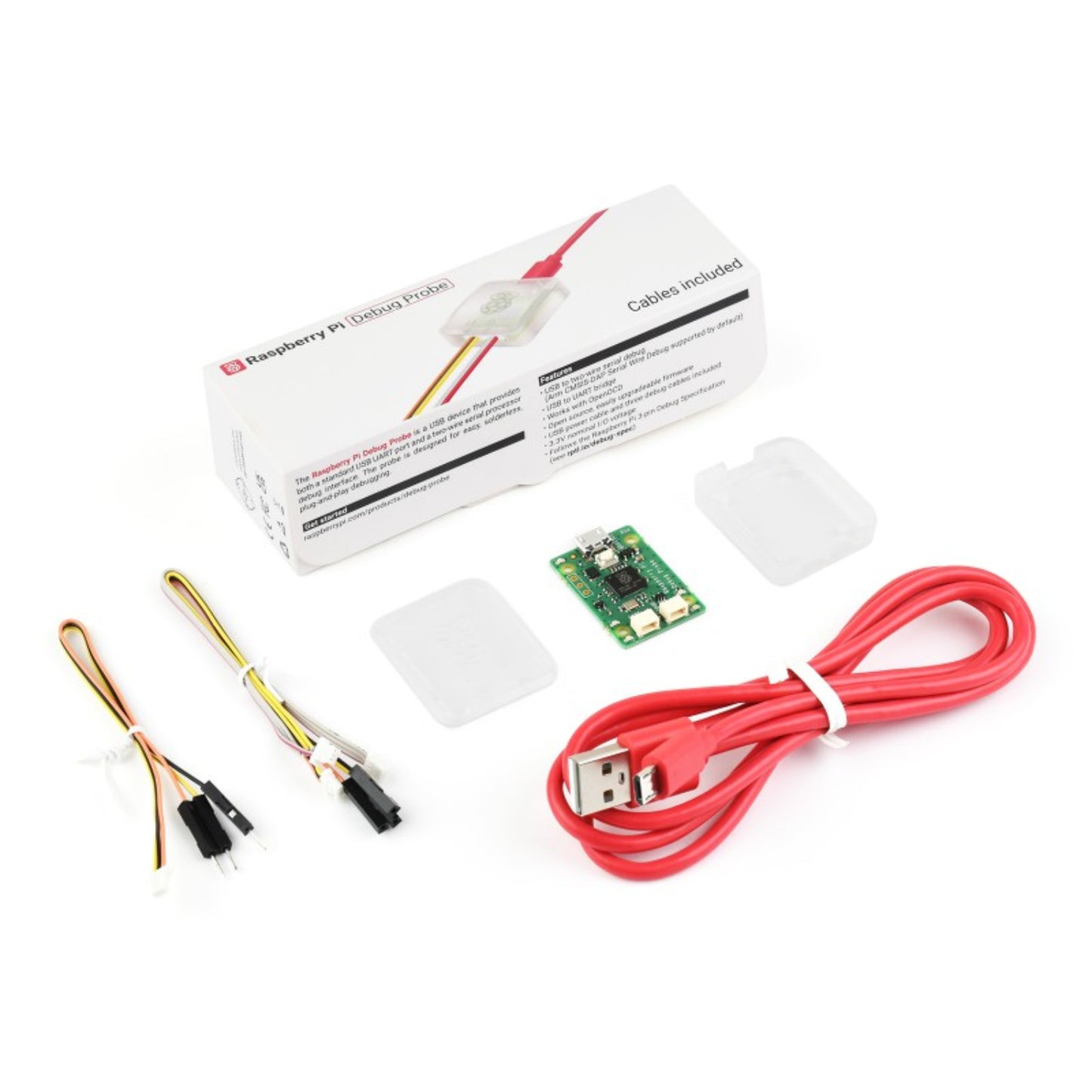

Package Included:
1x Raspberry Pi Debug Probe
