Description:
PZEM-004T AC 80~260V 100A Mini Multifunction power energy amp voltage monitor meter communication module with CT coil Electrical parameter measurement function (voltage, current, active power).The power button clear function.Power-down data storage function (cumulative power down before saving).
Specifications:
- Model: PZEM-004T
- Operating Voltage: 80-260VAC
- Test Voltage: 80-260VAC
- Rated Current: 100A
- Rated power: 100A / 22000W
- Operating frequency: 45-65Hz
- Measurement accuracy: 1.0
Features:
- Electrical parameter measurement function (voltage, current, active power, power).
- The power button clear function.
- Power-down data storage function (cumulative power down before saving).
- PC PC display function (display voltage, current, active power, power).
- The serial communication function (comes with TTL serial interface, through various terminals to communicate with the adapter plate, read, and set the parameters).
Precaution:
- This module is suitable for indoor, not outdoor use.
- The applied load should not exceed the rated power.
- The wiring should not be wrong.
Package Included:

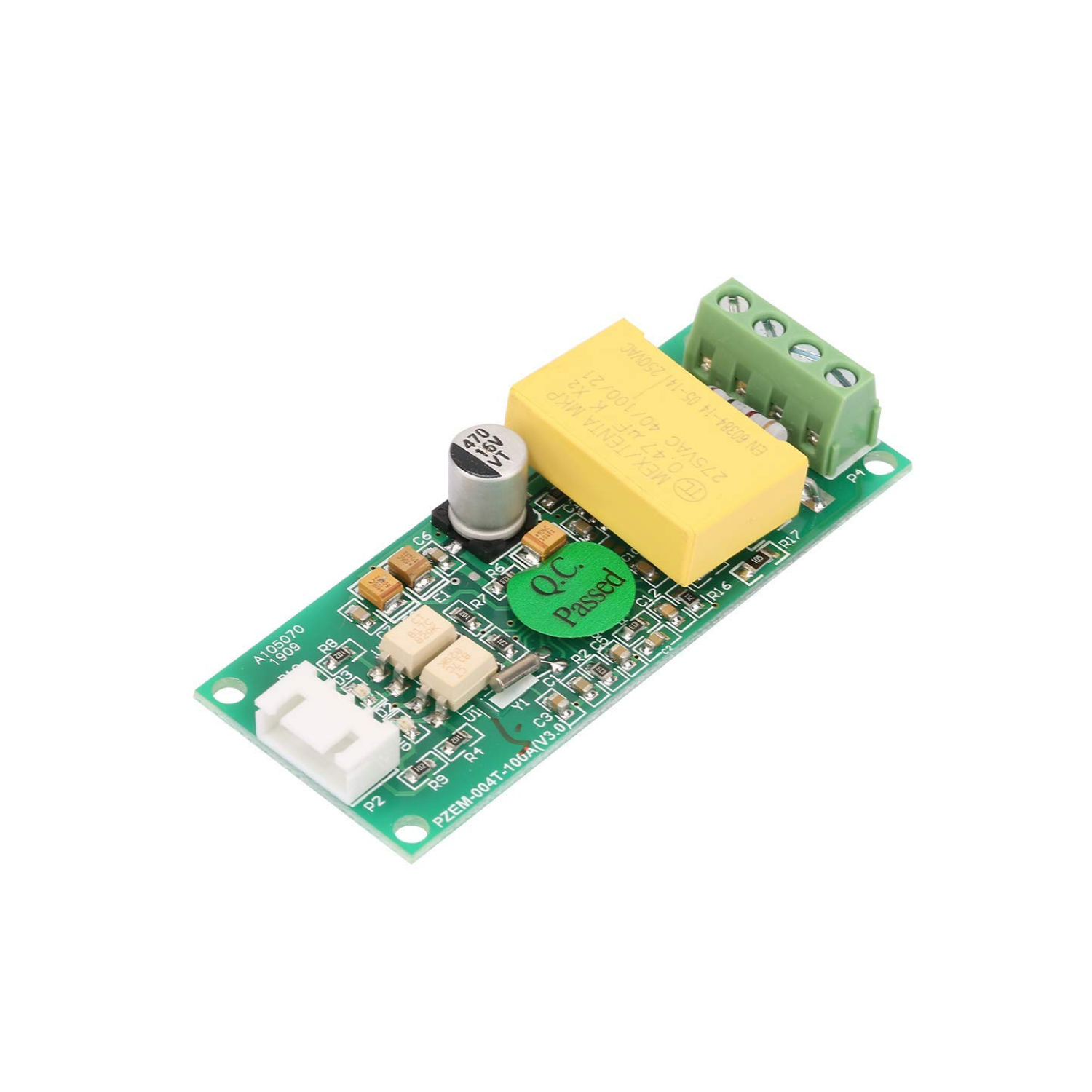

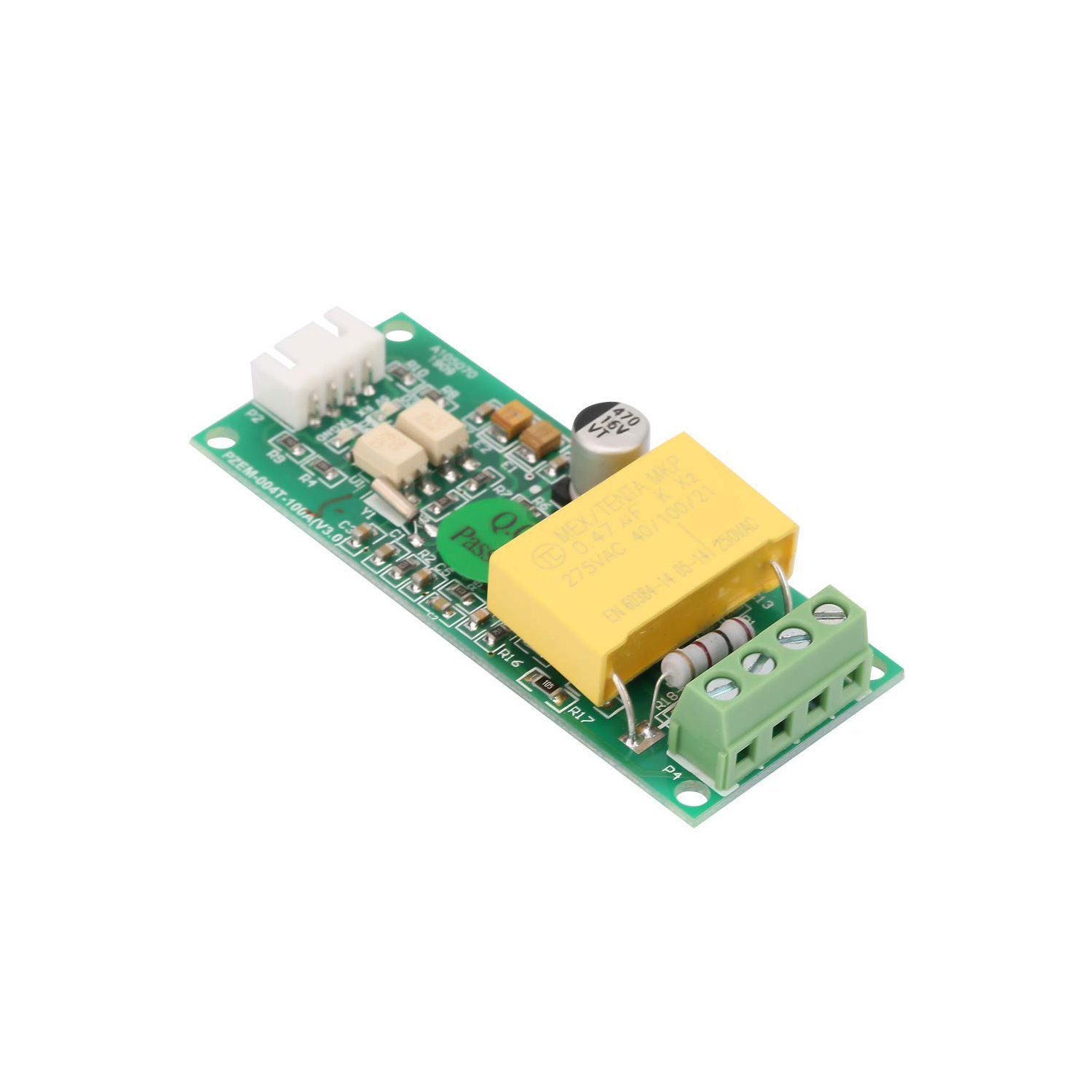

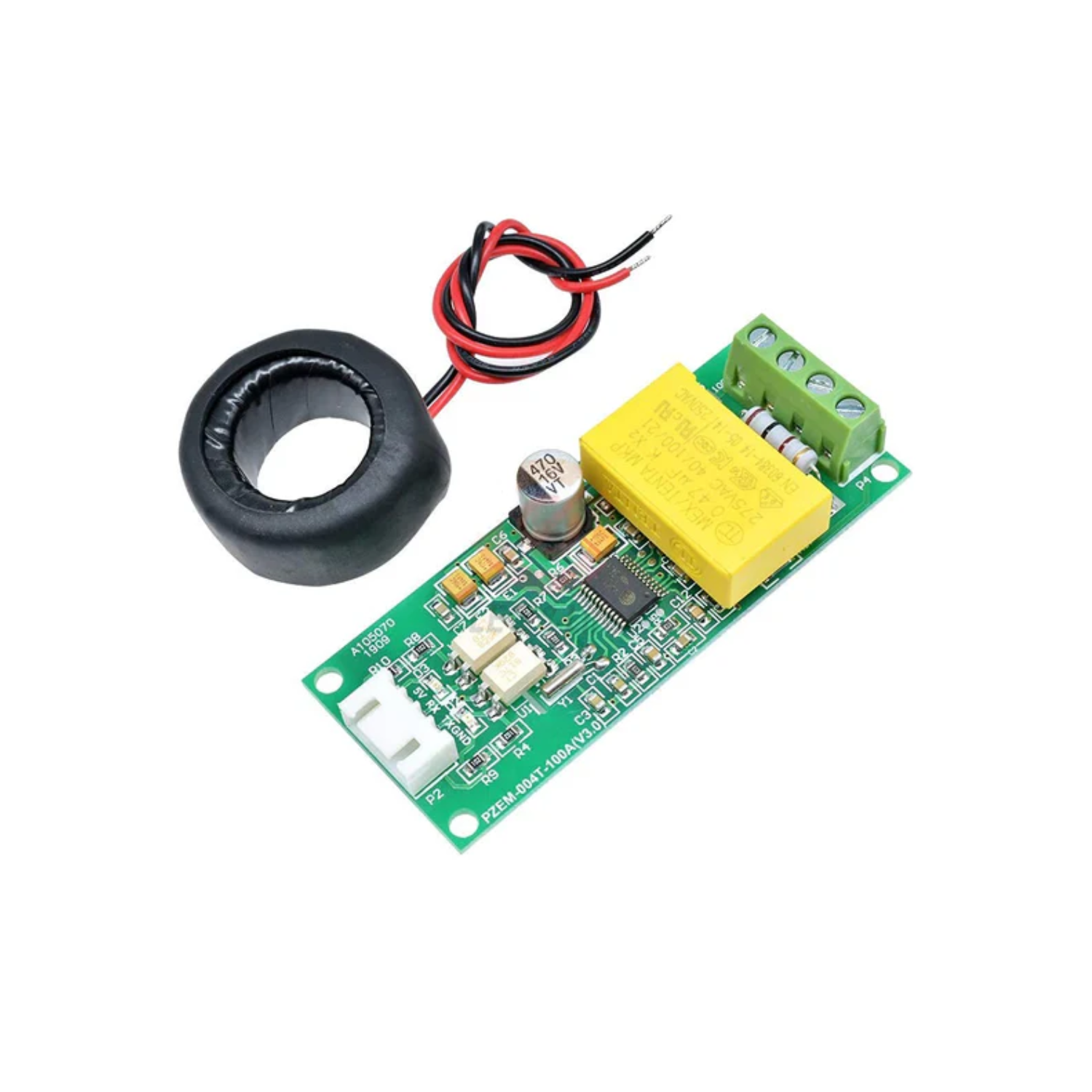

- 1 x PZEM-004T Multi-function AC Power Monitor Module
- 1 x CT coil
