Description:

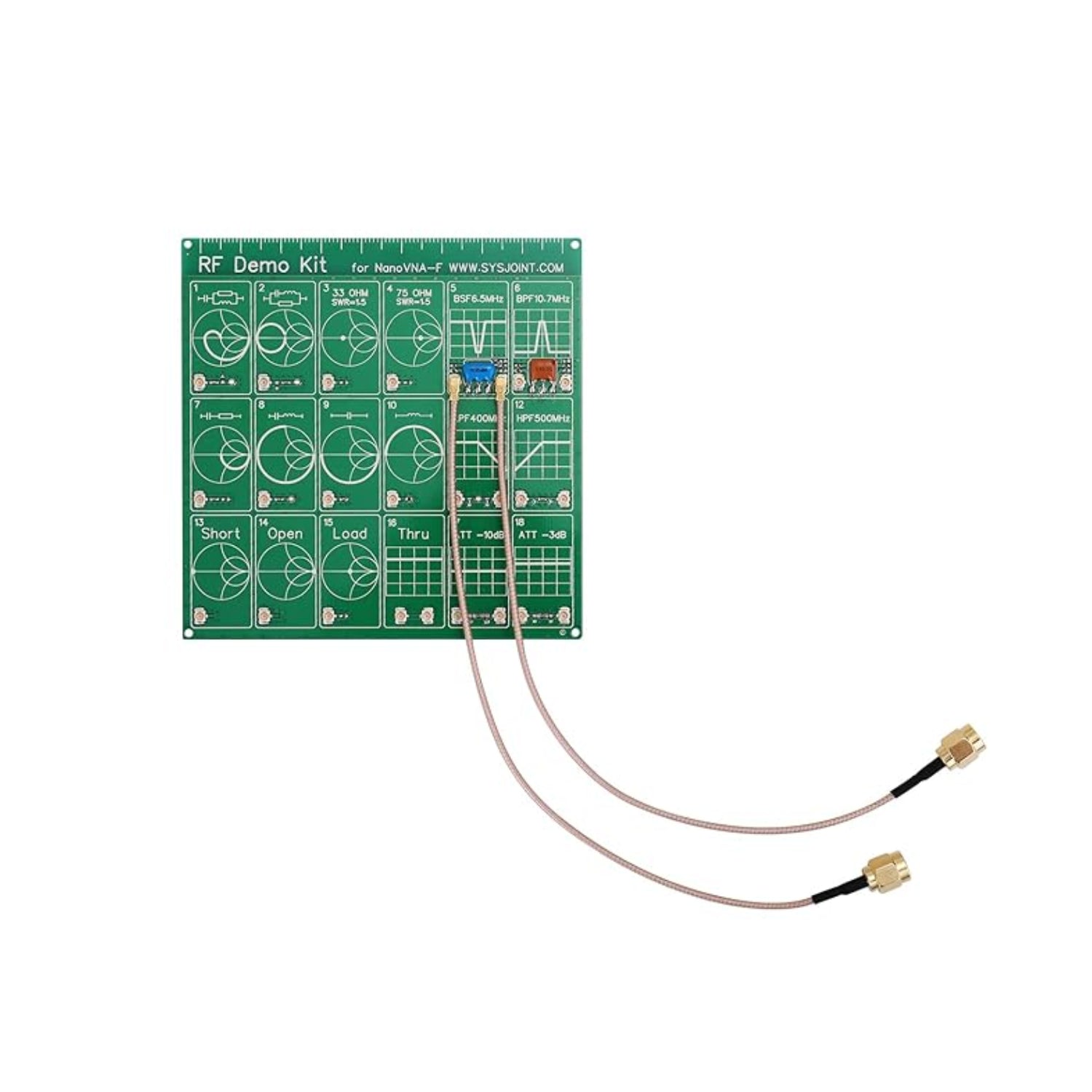

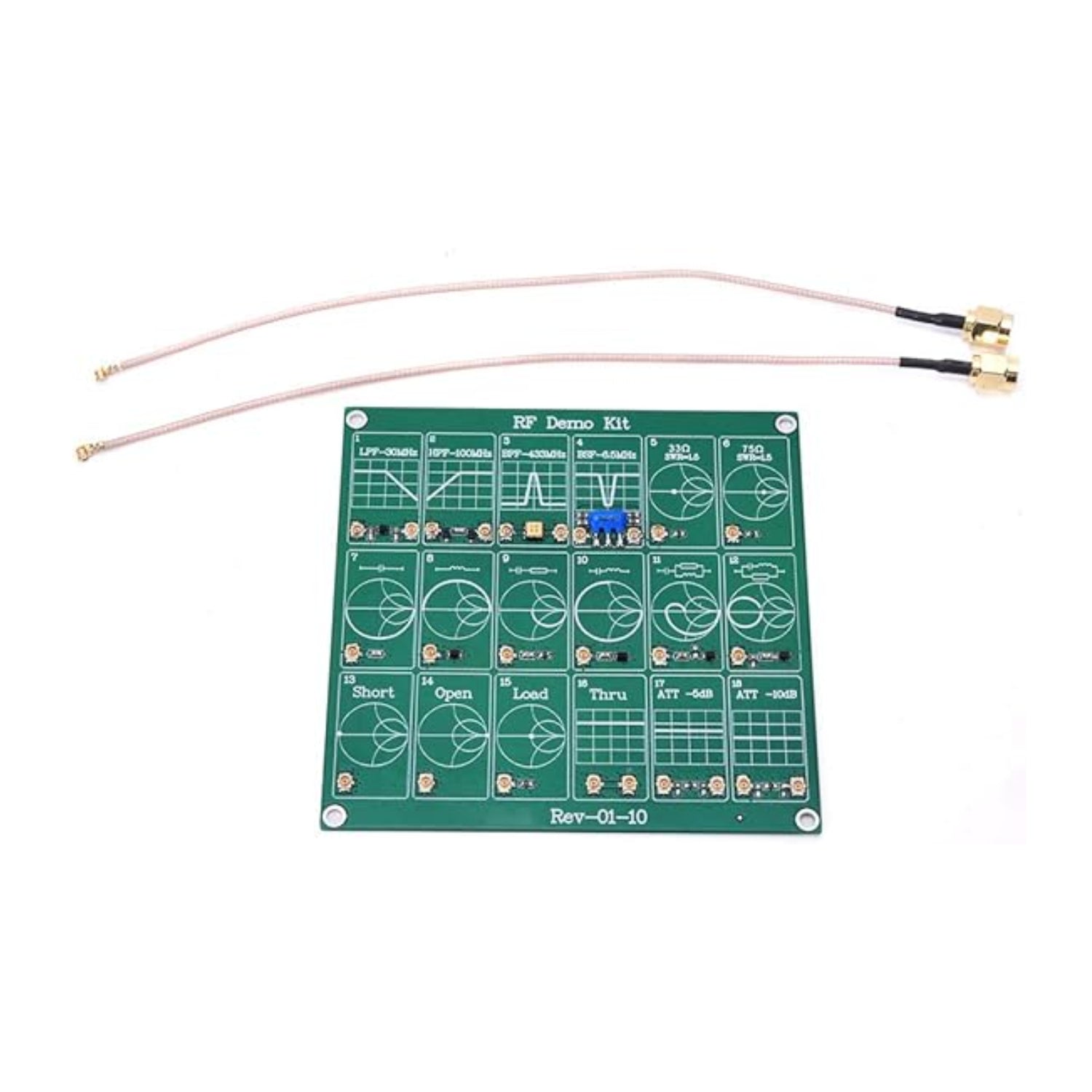

The NanoVNA RF Test Board is specifically designed for learning vector network analyzer (VNA) calibration and understanding. It serves as an essential tool for students, enthusiasts, and professionals in the field. Expand your knowledge and skills with our versatile and educational demo kit.

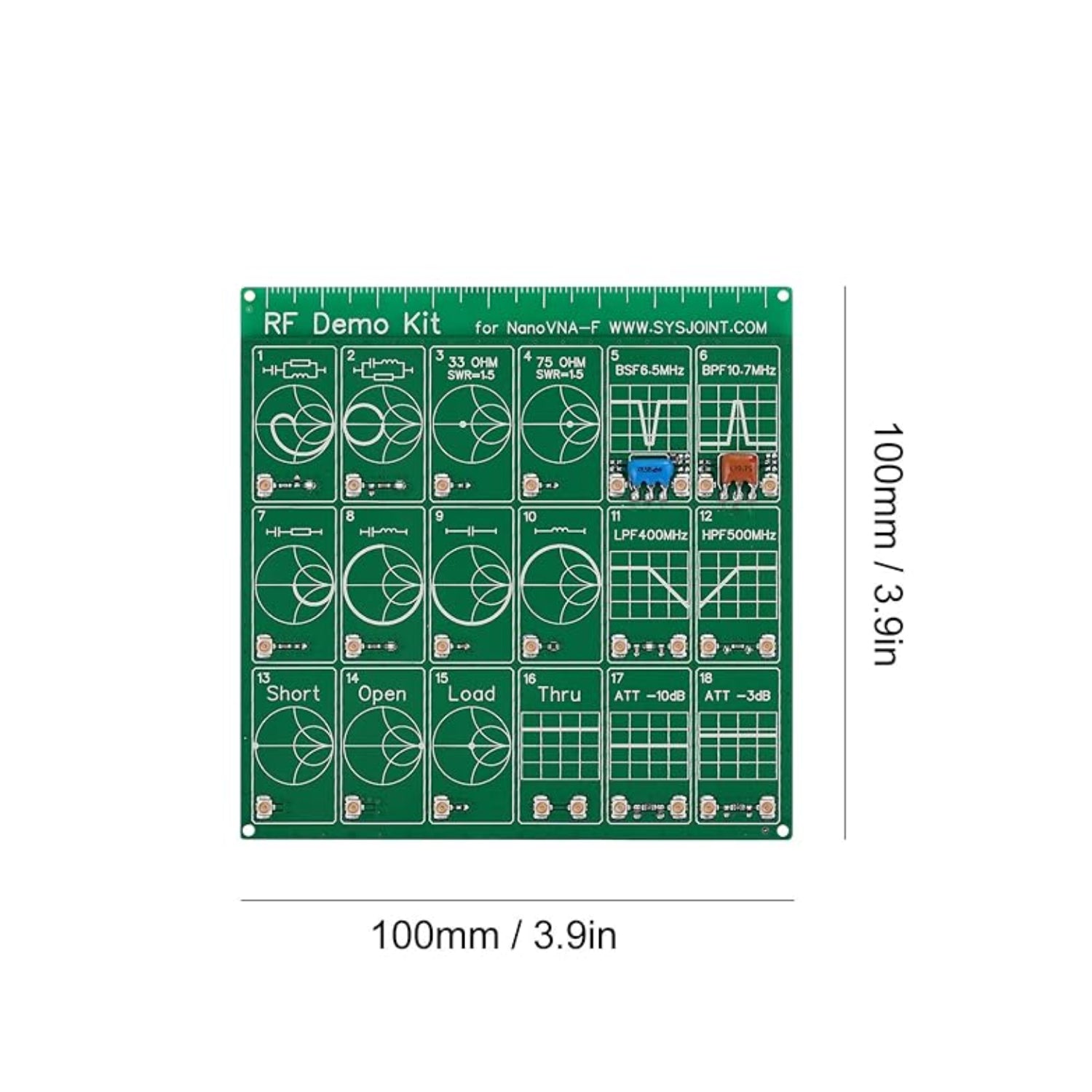

The Frequency Test board features RC and LC series circuits, as well as standalone capacitance and inductance components. Additionally, it includes a self-made low pass filter (LPF) with a 3dB bandwidth of 400MHz and a high pass filter (HPF) with a 3dB bandwidth of 500MHz. Experience exceptional frequency control and filtering capabilities.
Requency Test Board Demo Kit,Our RF tester board offers various calibration circuits and attenuation options. This includes short circuit calibration, open circuit calibration, 50-ohm load calibration, straight-through connections, as well as 10dB and 3dB attenuation circuits. Enjoy and accurate measurements, calibration, and controlled attenuation with ease.
Specifications:
- Length: 100mm
- Colour: Green
Features:
- RF Demo Kit is a vector network analyzer learner tool.
- Vector Network Analyzer (VNA) is Made of fine quality material, is practical, and has a long service life.
- RF Measurements is Compact and lightweight, easy to operate and use.
Package Included:
1 x NanoVNA RF Test Board Frequency Test Board Filter Attenuator Module Requency Test Board Demo Kit For Vector Network Analysis Filter and Attenuator Testing Vector Network Analyzer
