- Case Color: Gray
- Display: 1.8 TFT color display
- Material: PCB And Plastic
- Shutdown Current: 20nA
Description:
This is an M328 transistor diode resistor inductor capacitance MOS SCR ESR meter automatic detector. Can be used to test triode, field-effect tube(FET), diode, resistor, capacitor, inductor, MOS, SCR, which is available for various electric transistor testing. Can measure the current amplification factor of bipolar transistor (B), break-over voltage of emitter junction (Uf), the threshold voltage of MOSFET, grid capacitance, two resistors and potentiometer. Detecting NPN and PNP transistors, N-channel and P-channel MOSFET, thyristors, resistors, capacitors or other devices automatically. If the potentiometer is adjusted to one of the ends, the tester can not distinguish the pin of the middle and two ends.
Specification:
- Case Color: Gray
- Display: 1.8 TFT color display
- Material: PCB And Plastic
- Shutdown Current: 20nA
- Resistor Test Range: 0.5ohms -50Mohms
- Inductor Test Range: 0.01mH - 20H
- Capacitor Test Range: 25pF - 100000uF
- Resistor measurement resolution: 0.1 ohms (the maximum measured value is 50M OHMS)
Features:
- All components are protected by a plastic case, convenient to carry
- Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors and other devices
- Automatically test the pins of a component and display on the LCD
- Measure the gate threshold voltage and gate capacitance of the MOSFET
- Measure bipolar transistor current amplification factor and base-emitter threshold voltage
- Two-button operation, automatic shutdown to avoid unnecessary waste
- Short detection time: Only 2 seconds (it is normal to cost 1 minute for bulk capacitor detection)
Package Included:

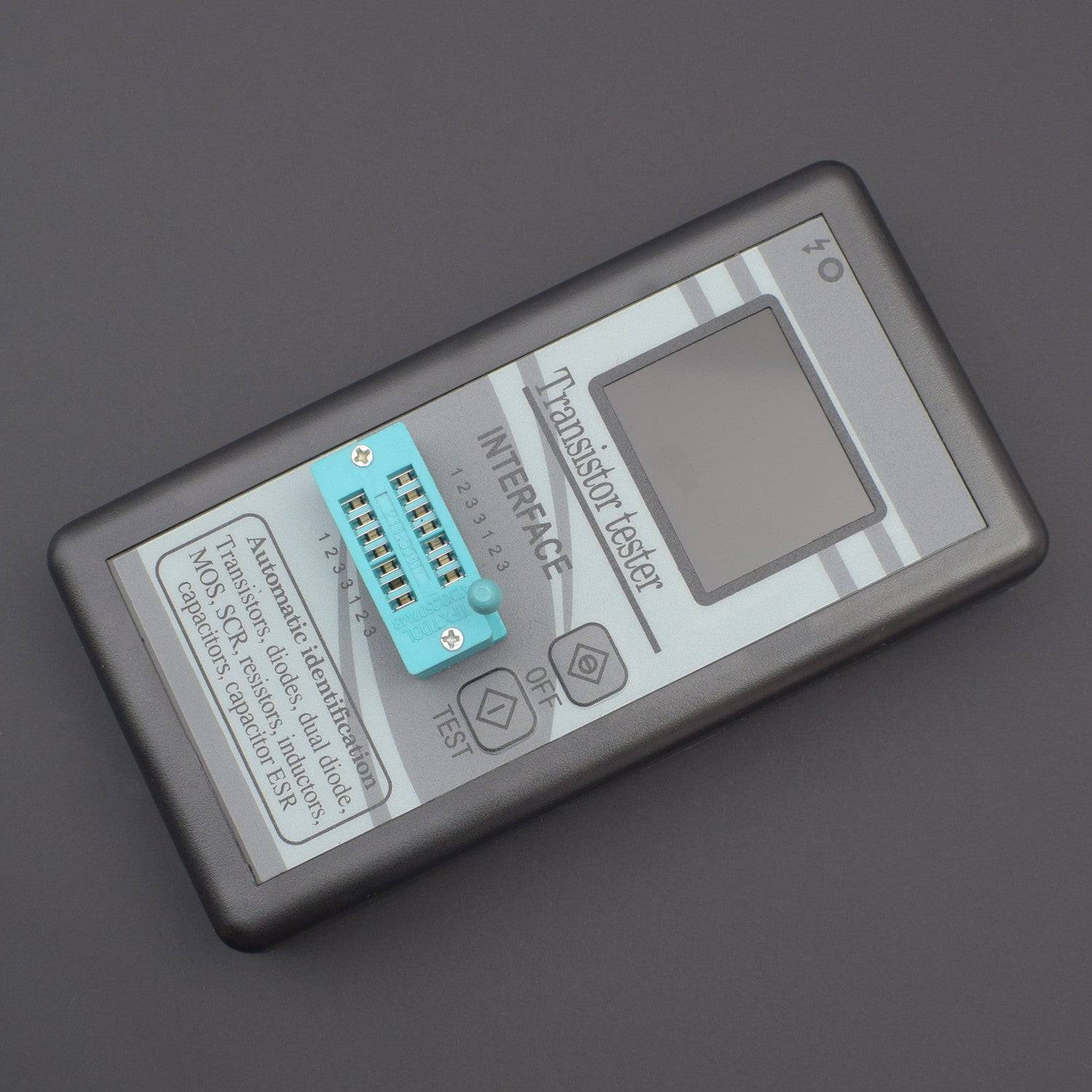

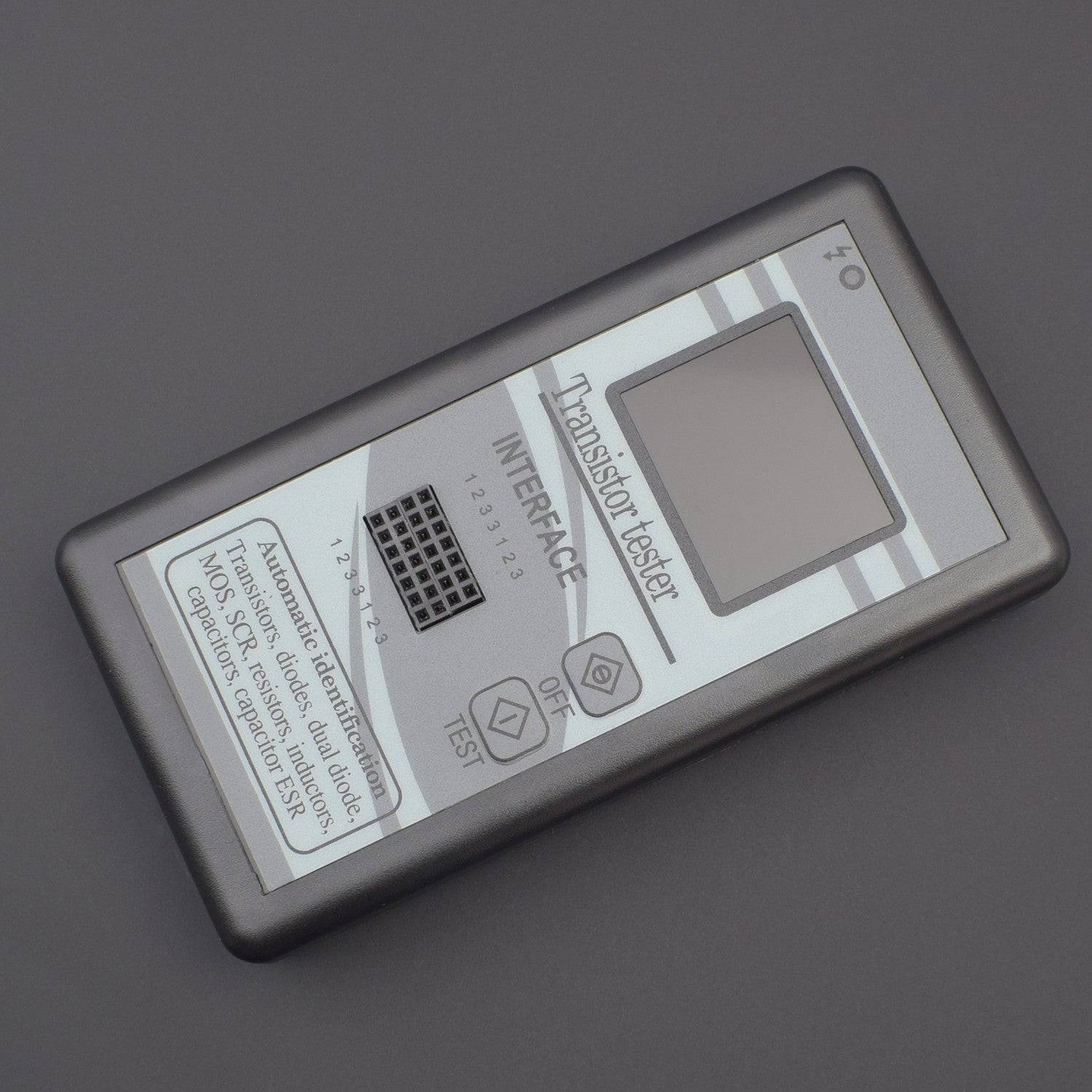

1 x M328 Transistor Diode Resistor Inductor Capacitance MOS SCR ESR Meter Automatic Detector With 1.8'' TFT Color LCD
