Description:

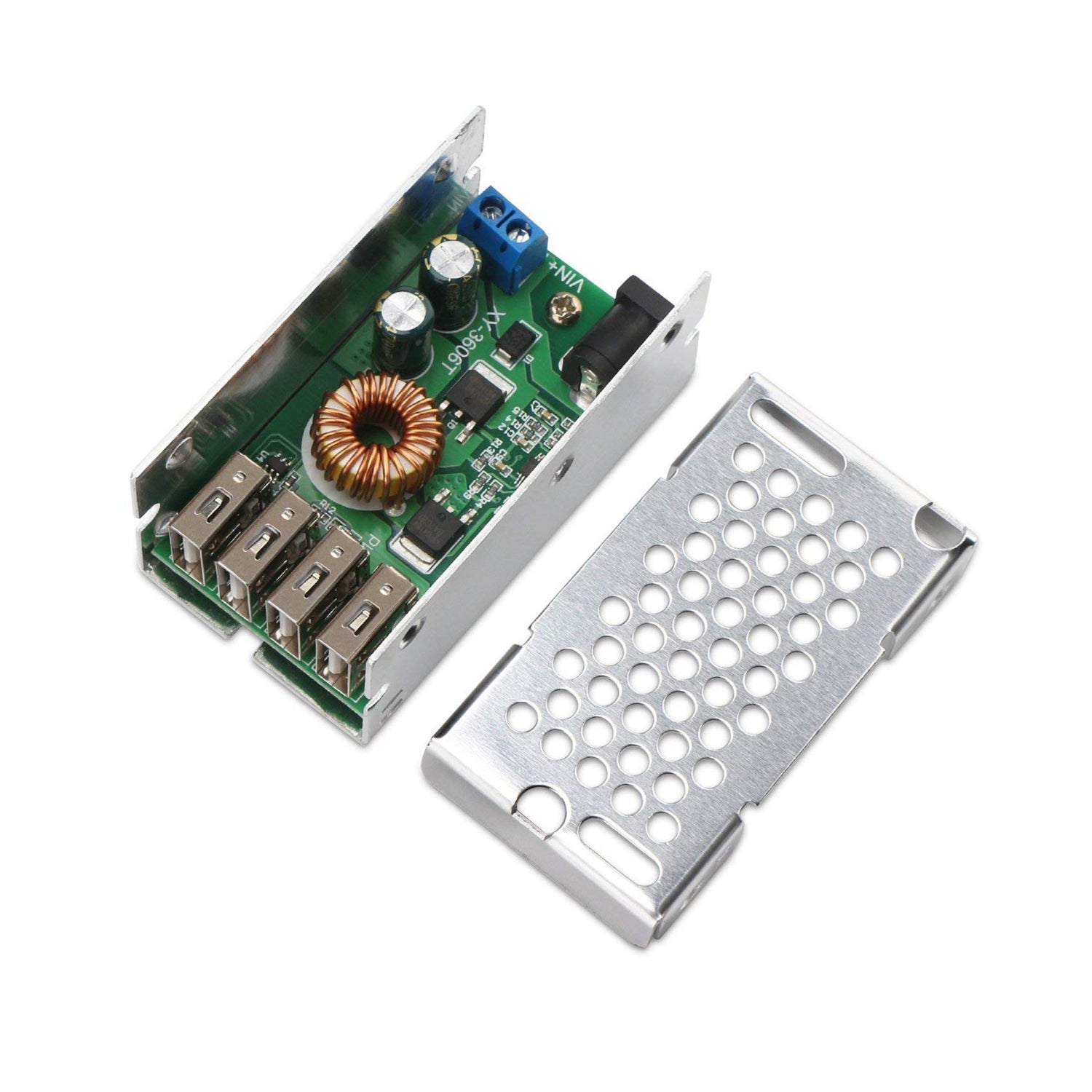

This is made for DC voltage step down 9-36V to 5V, this 25W power module is designed with reverse connection protection and output short circuit protection. Its synchronous rectification technology makes this item more stable and efficient; it allows wide voltage input and high current working. It comes with terminal blocks and a DC socket, so there is no need for any soldering work, and it is easy to make it work.

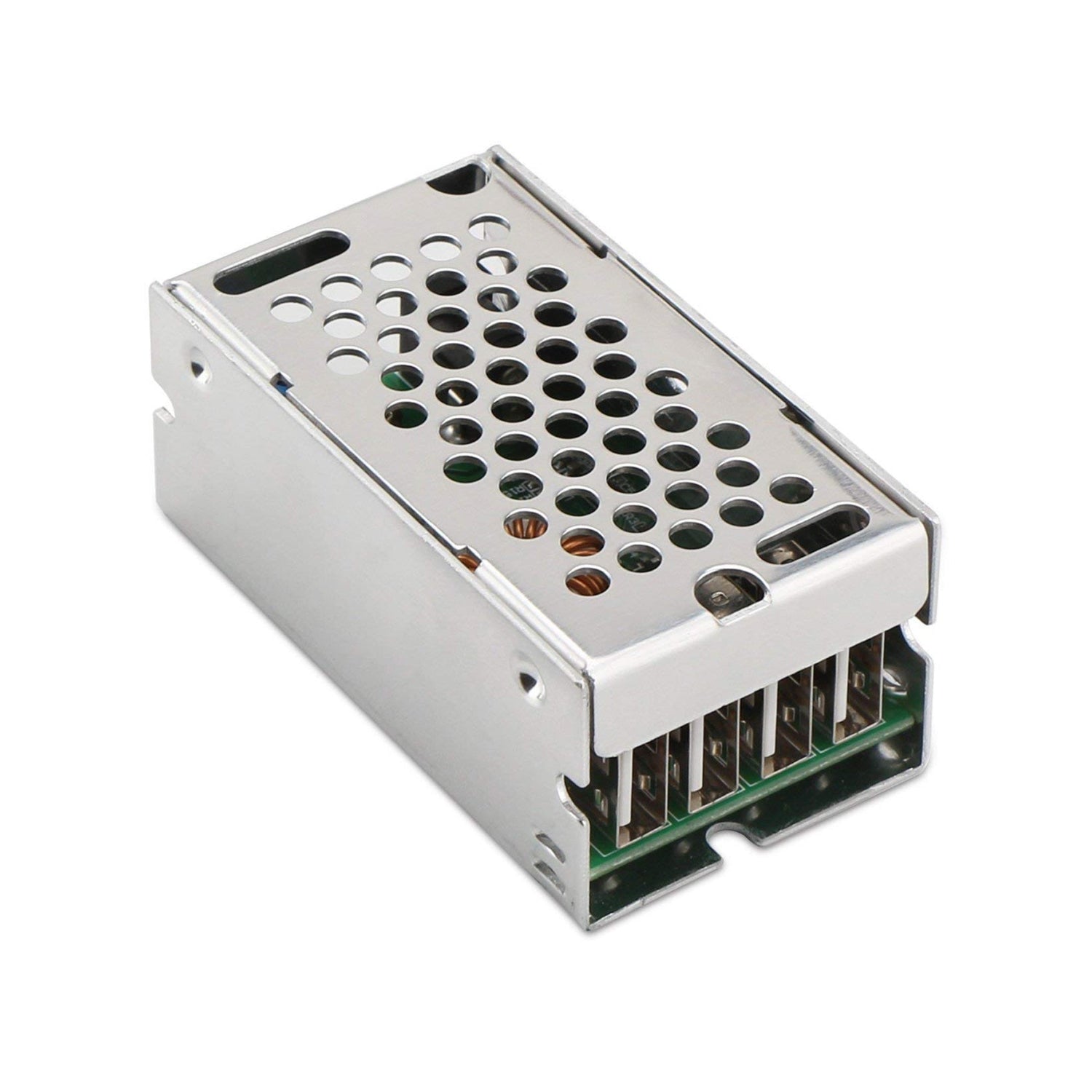

To power this module, you can use a suitable DC adapter or connect the terminal blocks with 4 USB ports; all of them have fast charge recognition chips that are compatible with Androids and iPhones. Also, with a fine and hard aluminum shell cover, this buck voltage module is strong enough to protect this power module well.
Specifications:
- Operating Voltage: DC9 -36V
- Output Voltage: 5V/5A/25W
- Protection Function: reverse connection protection and output short circuit protection
- Input and Output Example:
- Input 9-24V, output 5V/6A/30W
- Input 24-32V, output 5V/5A/25W
- Input 32-36V, output 5V/3.5A/18W
Features:

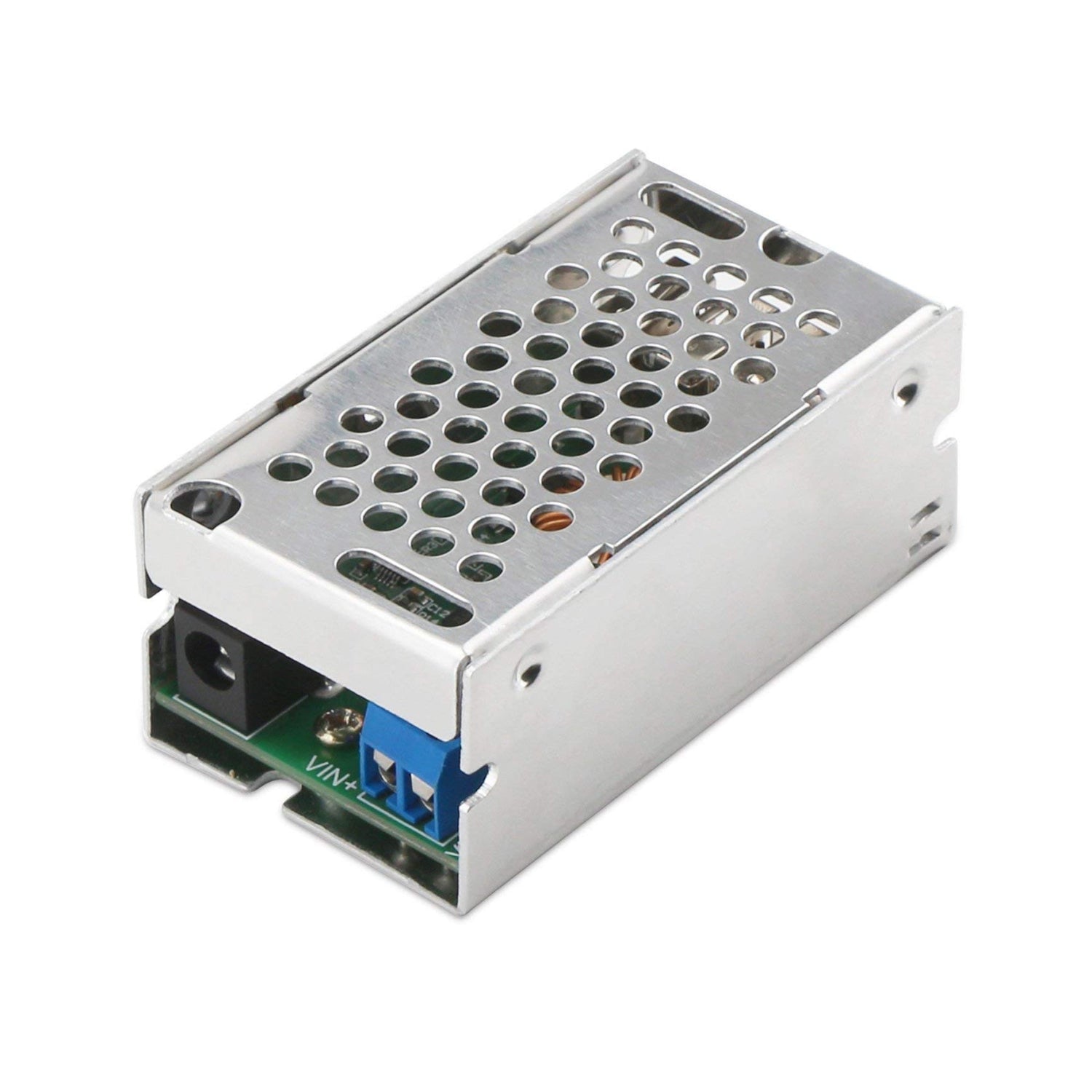

- With terminal blocks and DC sockets, no need for any soldering work, it is easy to make it work.
- To power this module, you can use a suitable DC adapter or connect the terminal blocks.
- With 4 USB ports, all of them have fast charge recognition chips that are compatible with Androids and iPhones.
- With a fine and hard aluminum shell covered.
Interface Description:
Applications:
This voltage regulator module can be used for DIY USB charging ports of cars, motorbikes, mobile power banks, batteries, etc, and it can also be used to charge MP3s and mobile phones. (To protect your device, please test real output when you power it and then start to charge your appliance)
Note: The Charging current is up to the inner power tube's IC of your phone. Therefore, even though this module can output 5A, that doesn’t mean it can charge a phone with 5A.
Package Included:
1 x LM2596S 9-36V to 5V DC-DC Converter
