Description:

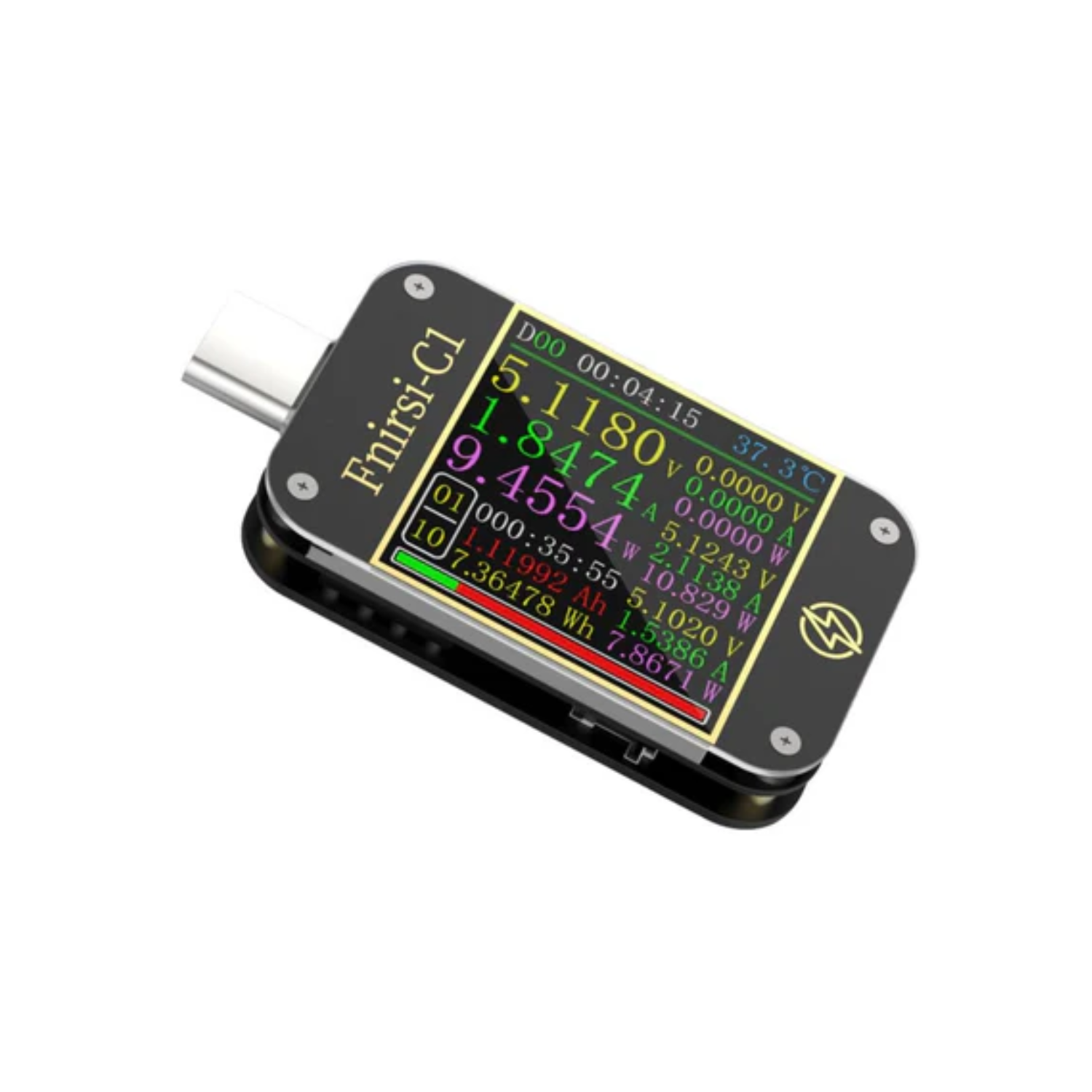

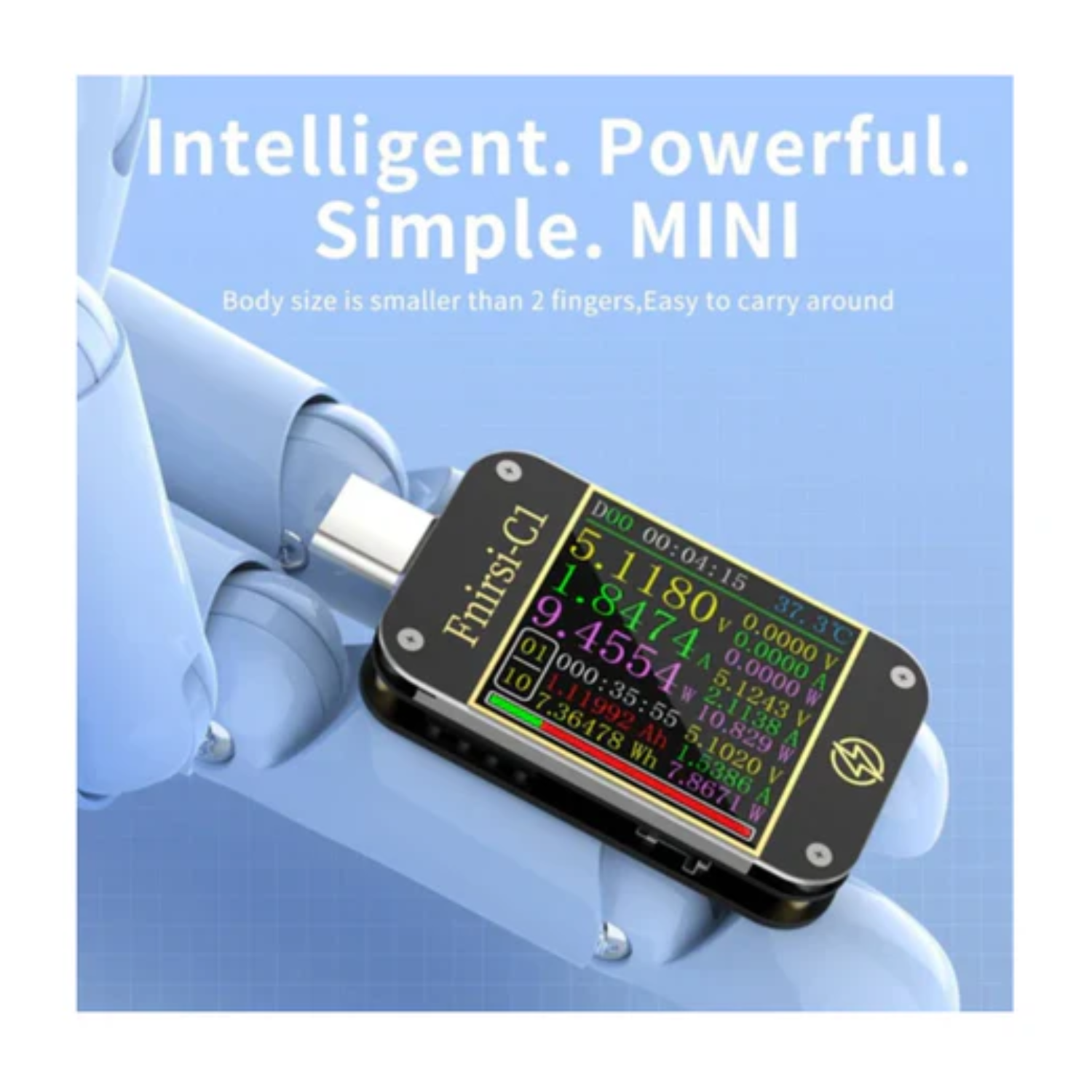

The Tester has a 1.3" TFT LCD display and 3 control buttons. It uses an internal ADC converter, which allows for very accurate measurements. It allows you to monitor input voltage, current, and power. It also displays the value of internal resistance. The USB tester can measure temperature flowing charge, and energy. This data is stored with a time stamp. The user can update the software via the micro USB port (PC). The USB tester can serve as a reliable diagnostic tool in various applications, including electronics, industrial, and home industries.
Specifications:

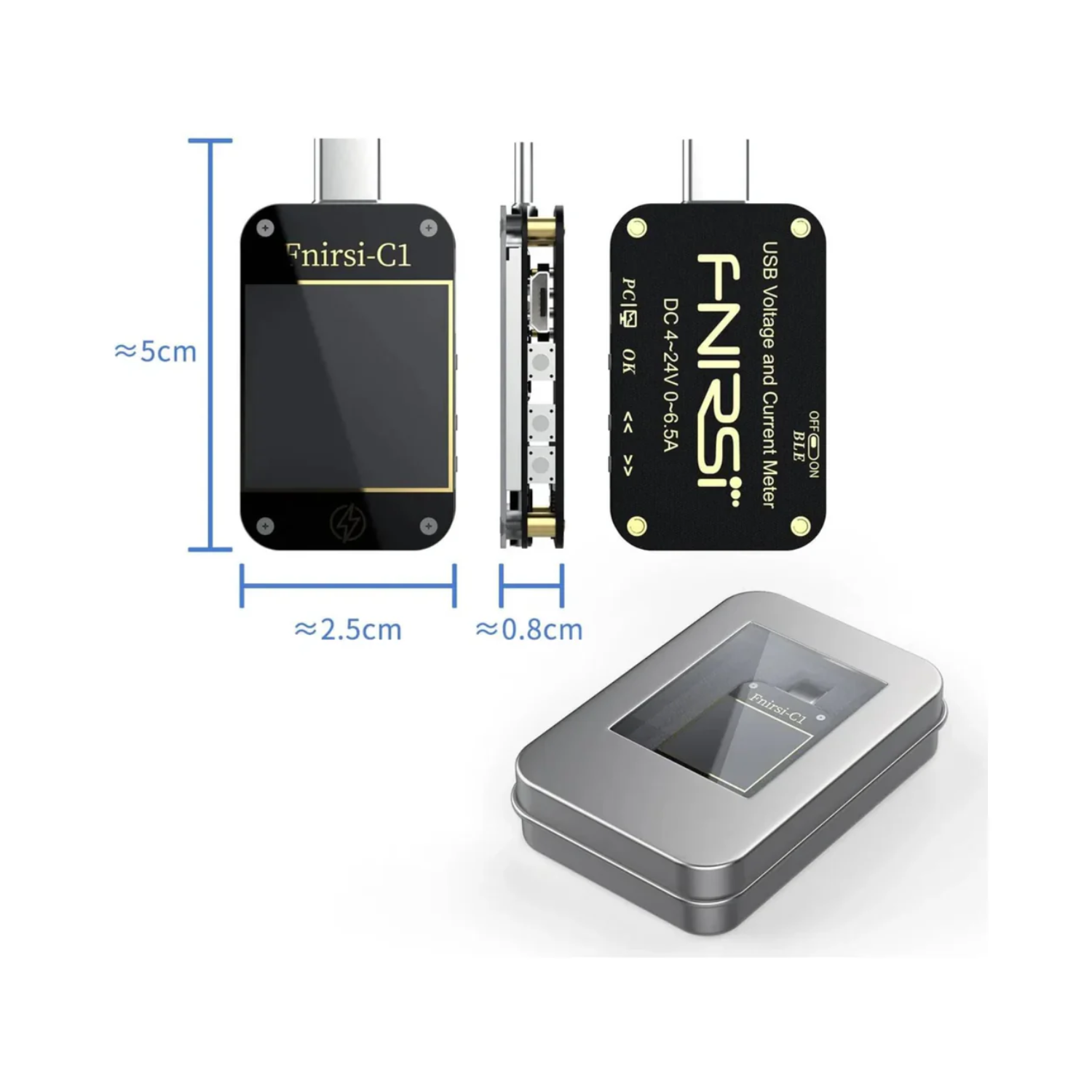

Dimensions
|
50*25*8cm
|
Display Type
|
Digital Only
|
Power Supply
|
DC |
Operating Temperature
|
-10℃ ~ +80℃
|
Accuracy Class
|
0.1%
|
Monitor Voltage
|
Range: 4~24V Resolution: 0.00001V Accuracy: ±(0.2‰+2) |
Monitor Current
|
Range: 0~6.5A Resolution: 0.00001A Accuracy: ±(0.5‰+2) |
Monitor Power
|
Range: 0~130W Resolution: 0.00001W Accuracy: ±(0.5‰+2) |
Load Equivalent Internal Resistance |
Range: 0~9999.9Ω Resolution: 0.0001Ω Accuracy: ±(0.5‰+2) |
D+/D- Voltage
|
Range: 0~3.3V
Resolution: 0.001V Accuracy: ±(1.0‰+2) |
Capacity
|
Range: 0~9999.99Ah
Resolution: 0.00001Ah |
Energy Used
|
Range: 0~9999.99Wh
Resolution: 0.00001Wh |
Internal Resistance of The Cable
|
Range: 0~9999.9Ω Resolution: 0.0001Ω |
Equipment Running Time
|
Range: 99d 23h 59m 59s Resolution: 1 second |
Record Time
|
Range: 999h 59m 59s Resolution: 1 second |





Pin Description:


Package Included:

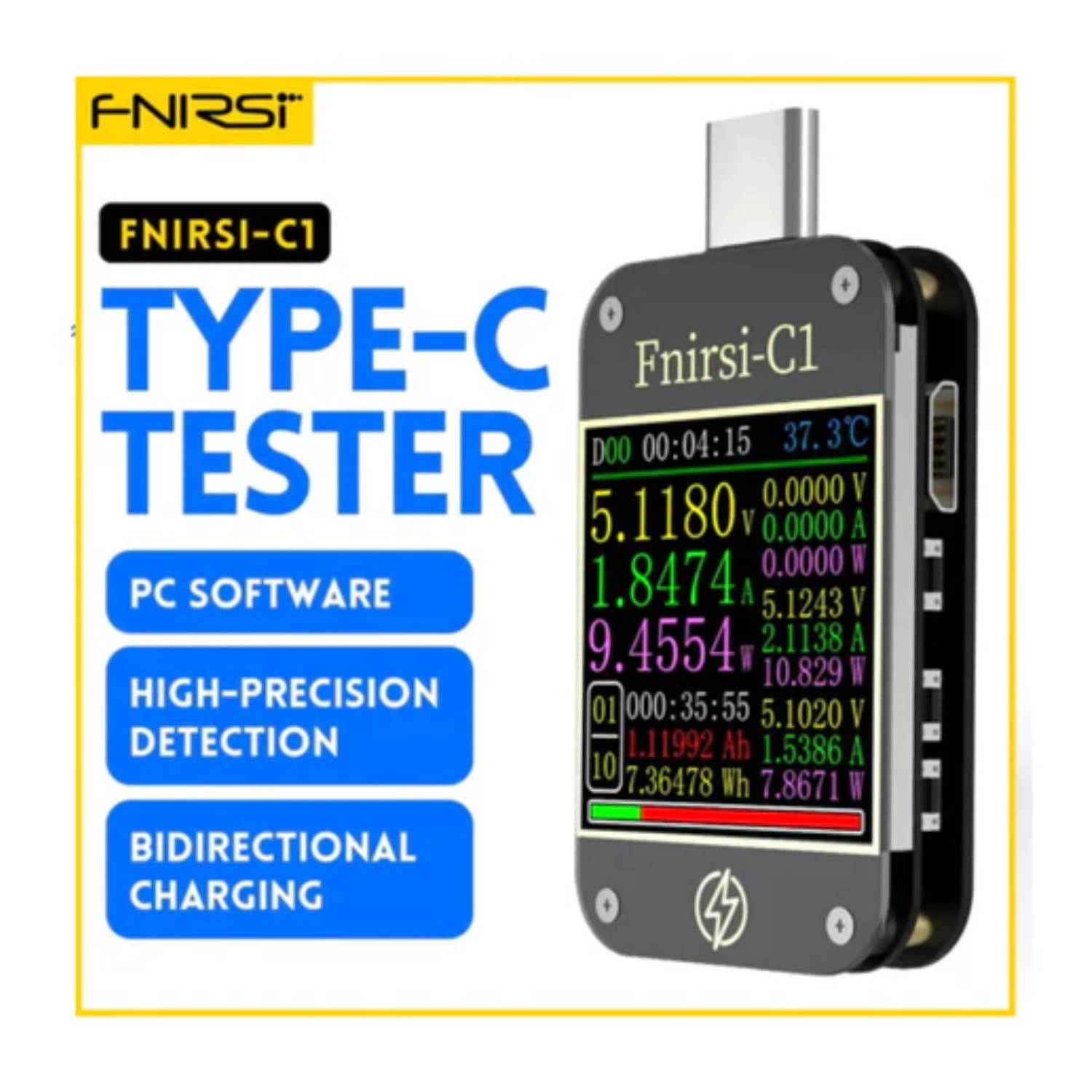

1 x FNIRSI C1 USB-C PD Trigger Tester
