Description:

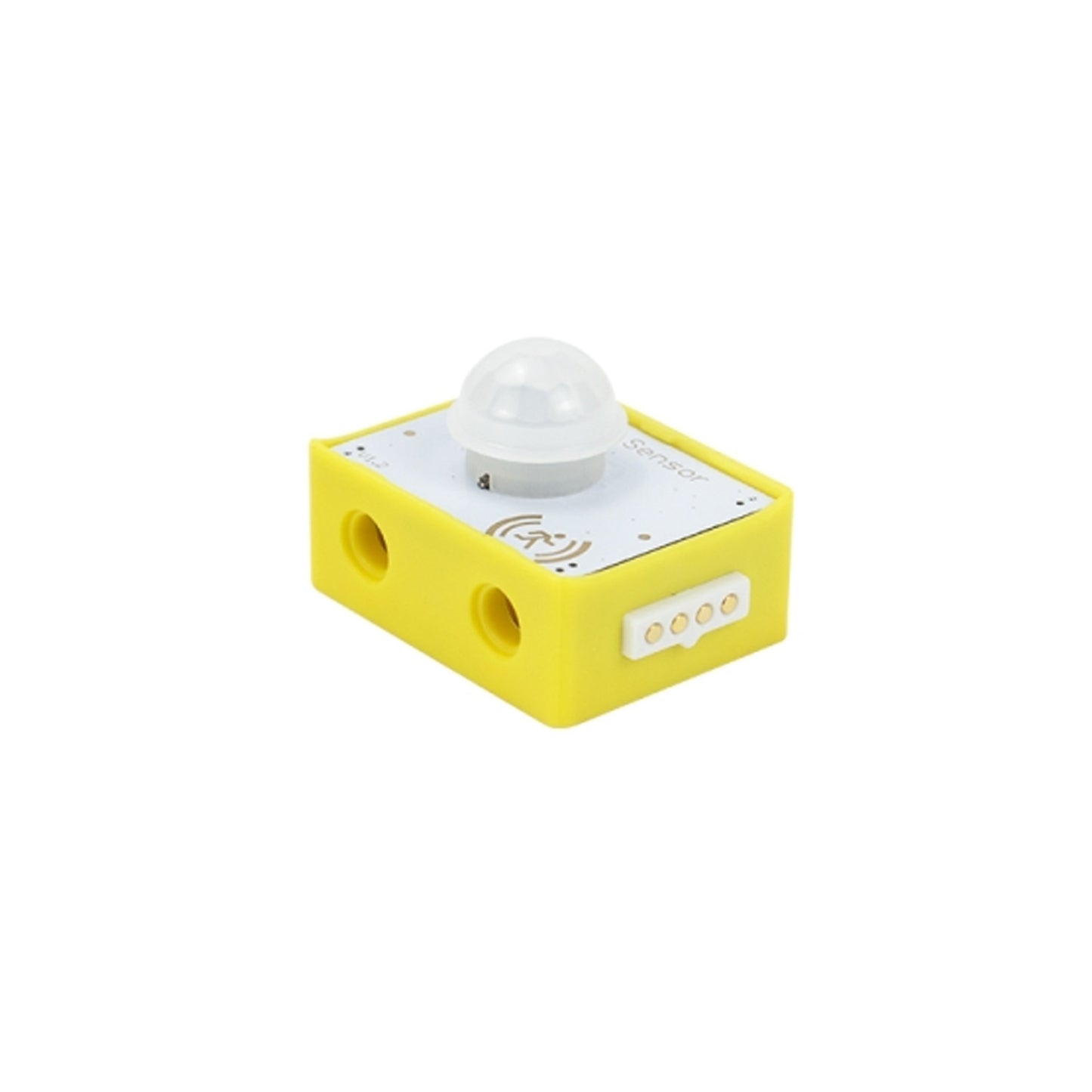

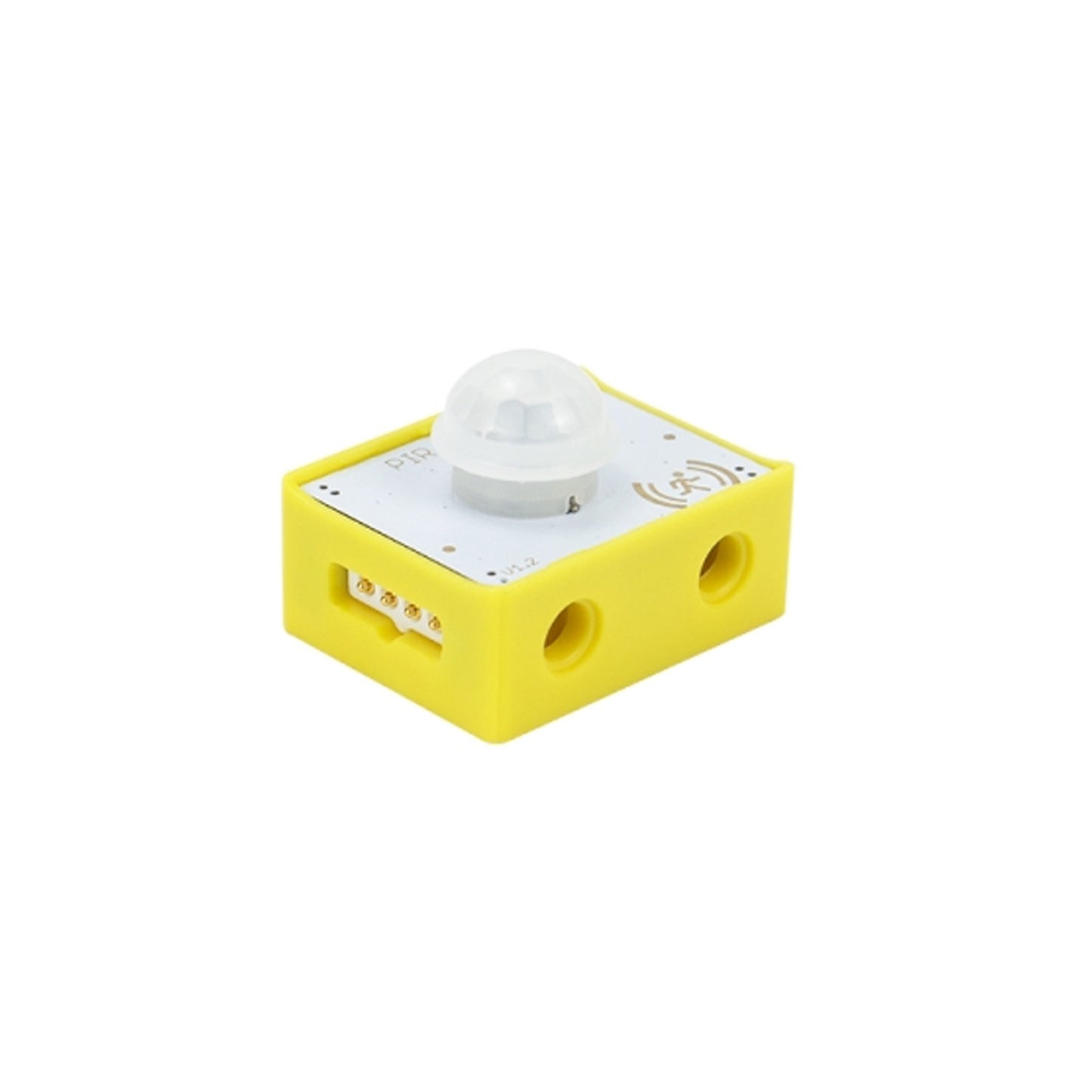

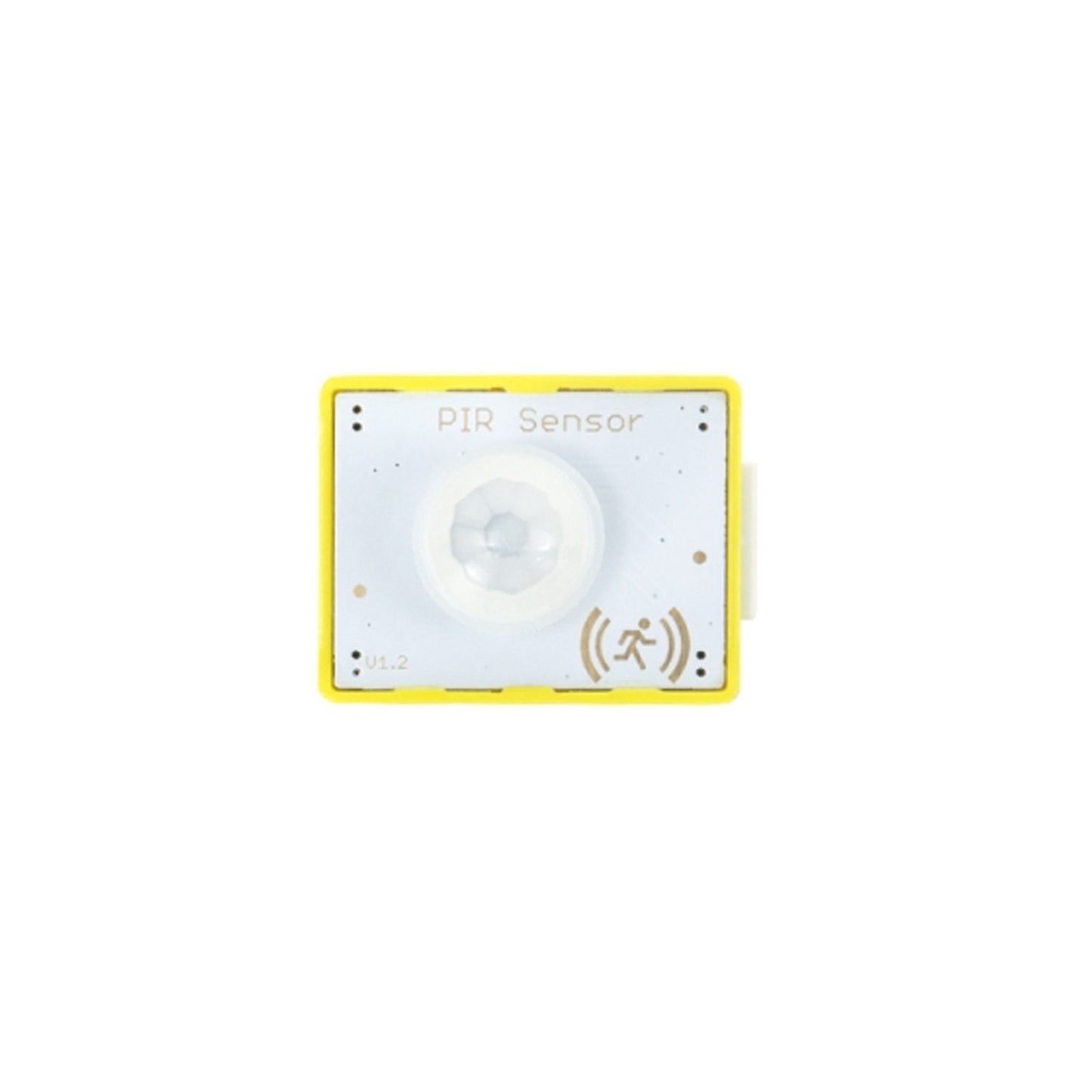

The Crowbits-PIR Sensor Module is a digital input module, it’s an electronic sensor that measures infrared light radiating from objects in its field of view. It’s often used in PIR-based motion detectors.
Specifications:
- Operating Voltage: 3.3V DC
- Supply mode: Crowbits Power Module
- Dimensions: 31.5(L)*24.5(W)*13(H) mm
Features:
- Easy to use, it can be used through magnetic connection, no complicated wires, tools, and operations.
Uses case
- You could locate the bright LED module outside your room door at night, together with a PIR sensor, once you walk out of your room in the middle of the night - the light will automatically turn on.
Tips:
- The measuring PIR distance is around 1m.
- The PIR sensor needs 20-30 seconds to prepare after powering on.
Useful Link:
Package Included:
1 x ELECROW-Crowbits-PIR Sensor Module
