ELECROW

ELECROW-Crowbits-LED Bar RGB LED Bar Module Addressable RGB LED Bar For Programmable LED Strip LED Bar For Stage Lighting RGB LED Bar applications Versatile LED Bar For Home Automation - RS7159

ELECROW-Crowbits-LED Bar RGB LED Bar Module Addressable RGB LED Bar For Programmable LED Strip LED Bar For Stage Lighting RGB LED Bar applications Versatile LED Bar For Home Automation - RS7159

SKU:RS7159

Low stock: 1 left

Regular price Rs. 949.00
Regular price Sale price Rs. 949.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

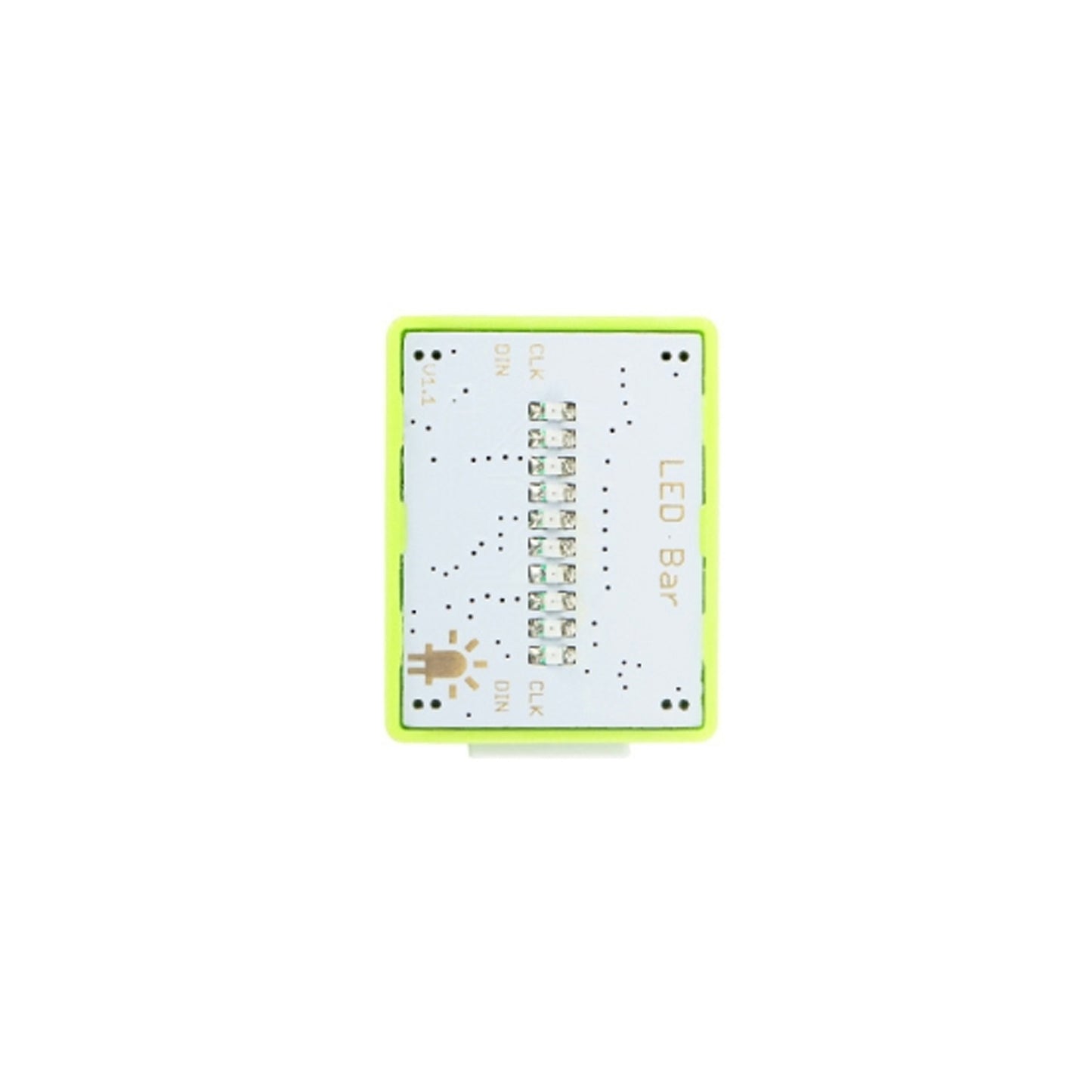

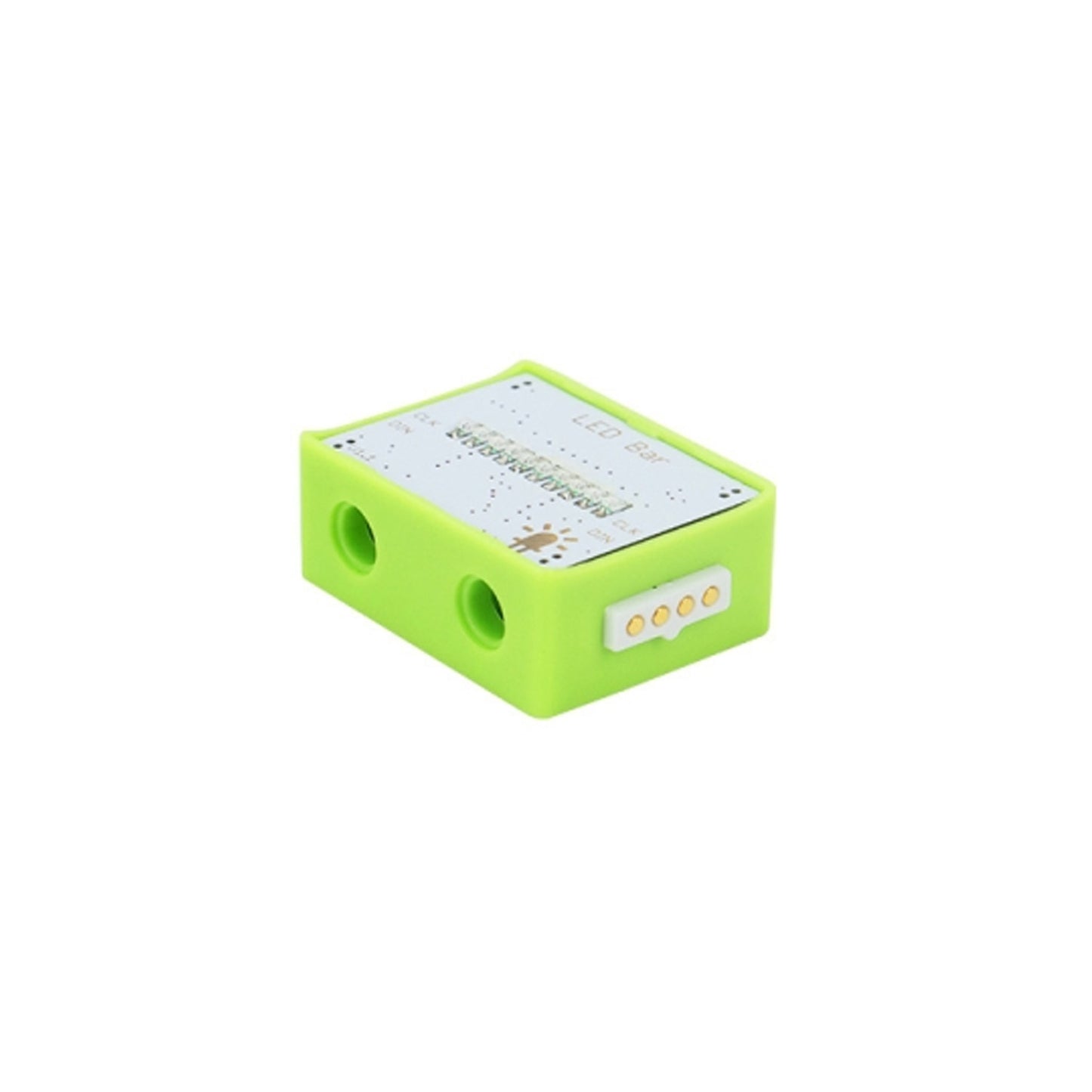

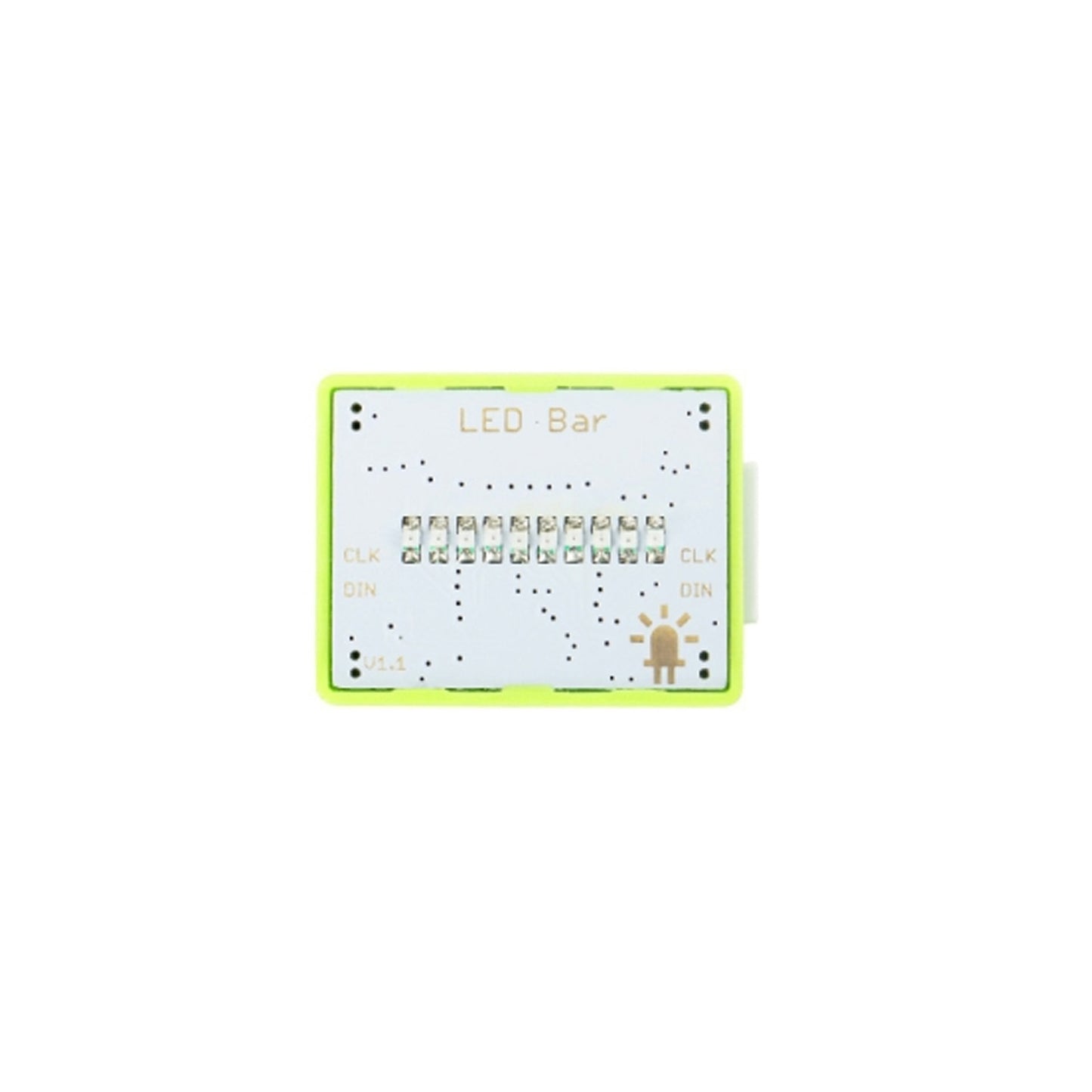

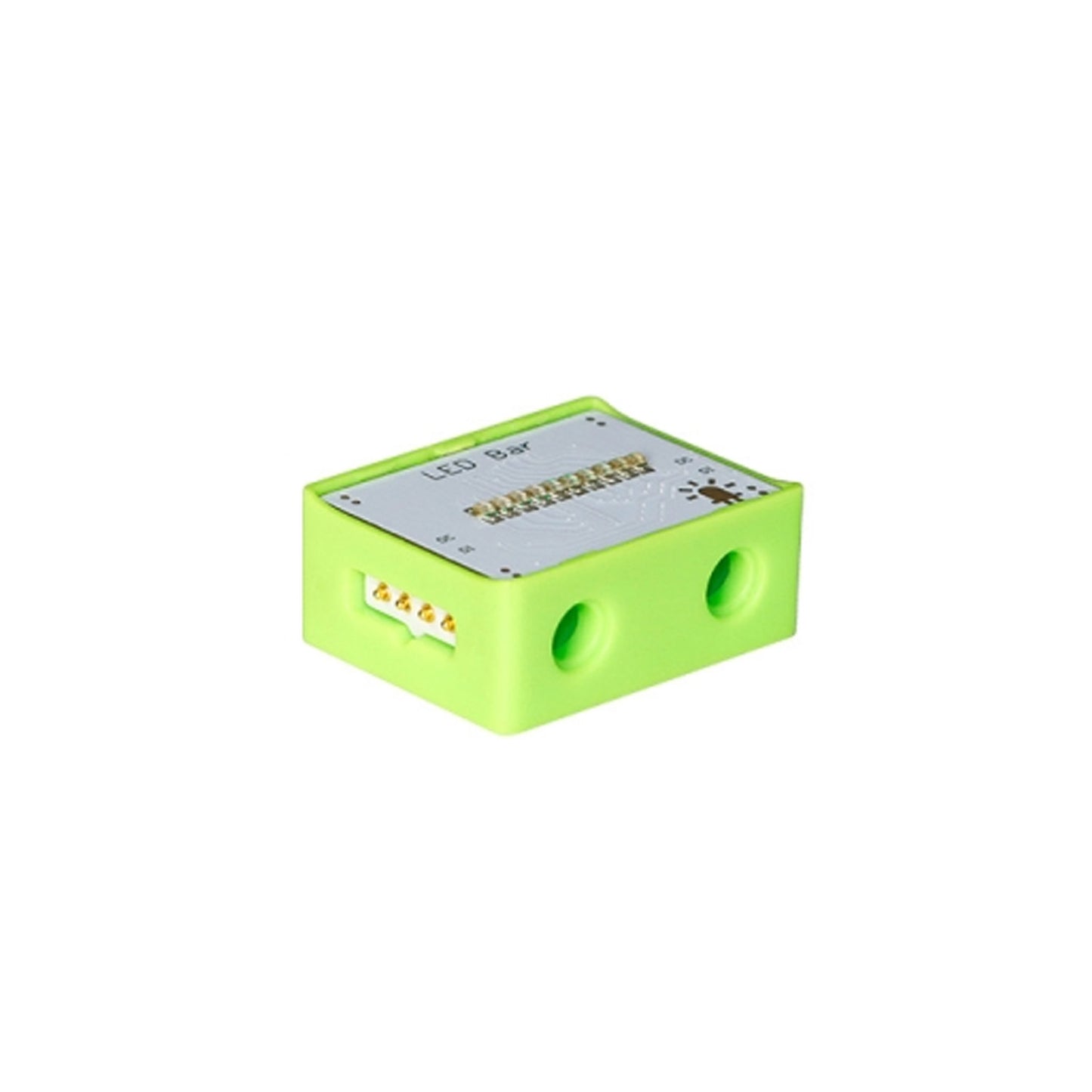

Crowbits-LED Bar is a digital output module, that can display battery power, voltage value, water depth, sound size, and any other scene that needs to represent the gradient value.

Specifications:

  • Interface Type: GPIO
  • Operating Voltage: 3.3V DC
  • Dimensions: 5(L)*24.5(W)*13(H)mm

Features:

  • Detect various signals

How does it work?

Through a dedicated LED driver chip (MY9221), serial displacement input, and parallel output, two input signal lines can be used to simultaneously control the lighting of multiple LED lights. When the output of the MY9221 is high, Then the level of the IO port is equal to the VCC level, so it cannot form a circuit to the ground, and the lamp will not be on if there is no current flowing through it.

If the output of the MY9221 is low, then the lamp will pass from the VCC through the resistor to the ground to form a circuit, so the lamp is on. Then input different data from the data input port, After the code of MY9221, it can control the switching on and off of multiple IO ports. To send different data to MY9221 according to the external battery power value, voltage value, water depth, and sound level to control the switching on and off of a different number of lights, which is directly reflected by the number of LED lights.

How to use it?

It can be used in conjunction with other modules to display the LED light bar after various signals are detected.

Useful Link:

Crowbits-LED Bar

Package Included:

1 x ELECROW-Crowbits-LED Bar RGB LED Bar Module Addressable RGB LED Bar
