Description:

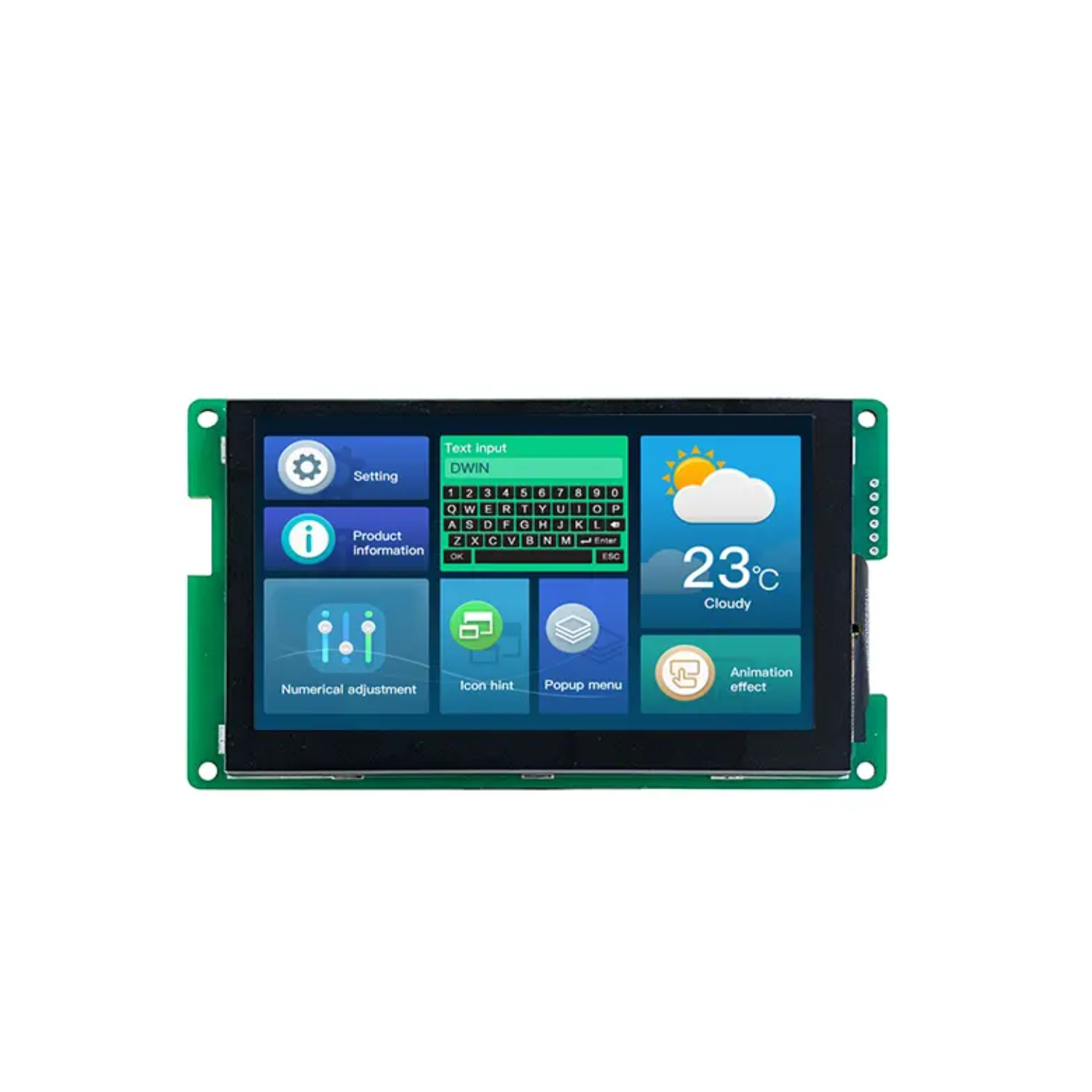

The DWIN 4.3 Inch Intelligent HMI Display. This feature-rich SMART screen offers a powerful and user-friendly interface solution for a wide range of applications. What makes this display truly intelligent is the included UI Development Software (TA / DGUS II pre-installed), empowering users to create custom graphical user interfaces with ease. Design interactive elements such as buttons, sliders, dynamic graphs, and clear text displays, all tailored to your specific project requirements.
Experience exceptional visual clarity on the 4.3-inch IPS LCD screen, providing wide viewing angles and consistent color reproduction. The display boasts a rich color palette with support for RGB color and an impressive 16.7 million colors, ensuring vibrant and detailed visuals. With a brightness of 200 nit, this HMI screen remains clearly visible even in brightly lit environments, including daylight conditions.
Seamless integration is a key advantage of this DWIN SMART screen. It offers broad compatibility with all microcontroller boards that support I2C communication, making it a versatile choice for various embedded systems and control applications.
Specifications:
- Model No.: DMG80480C043
- Size -4.3″
- Touch Type: Resistive
- RAM: 128 KB
- Display Format - 480×800 Pixel Matrix
- Colour – 24-bit colour 8R8G8B
- Flash Memory: 16 MB
- Interface: UART, I2C
- LED Brightness: 200 nit
Features:
- Design custom interfaces easily with included TA / DGUS II software.
- Enjoy wide viewing angles and rich 16.7M colors.
- Clear 200nit brightness for indoor and outdoor use.
- Simple integration via I2C communication.
- Create buttons, sliders, graphs, and text displays.
- Accurate and durable touch interaction.

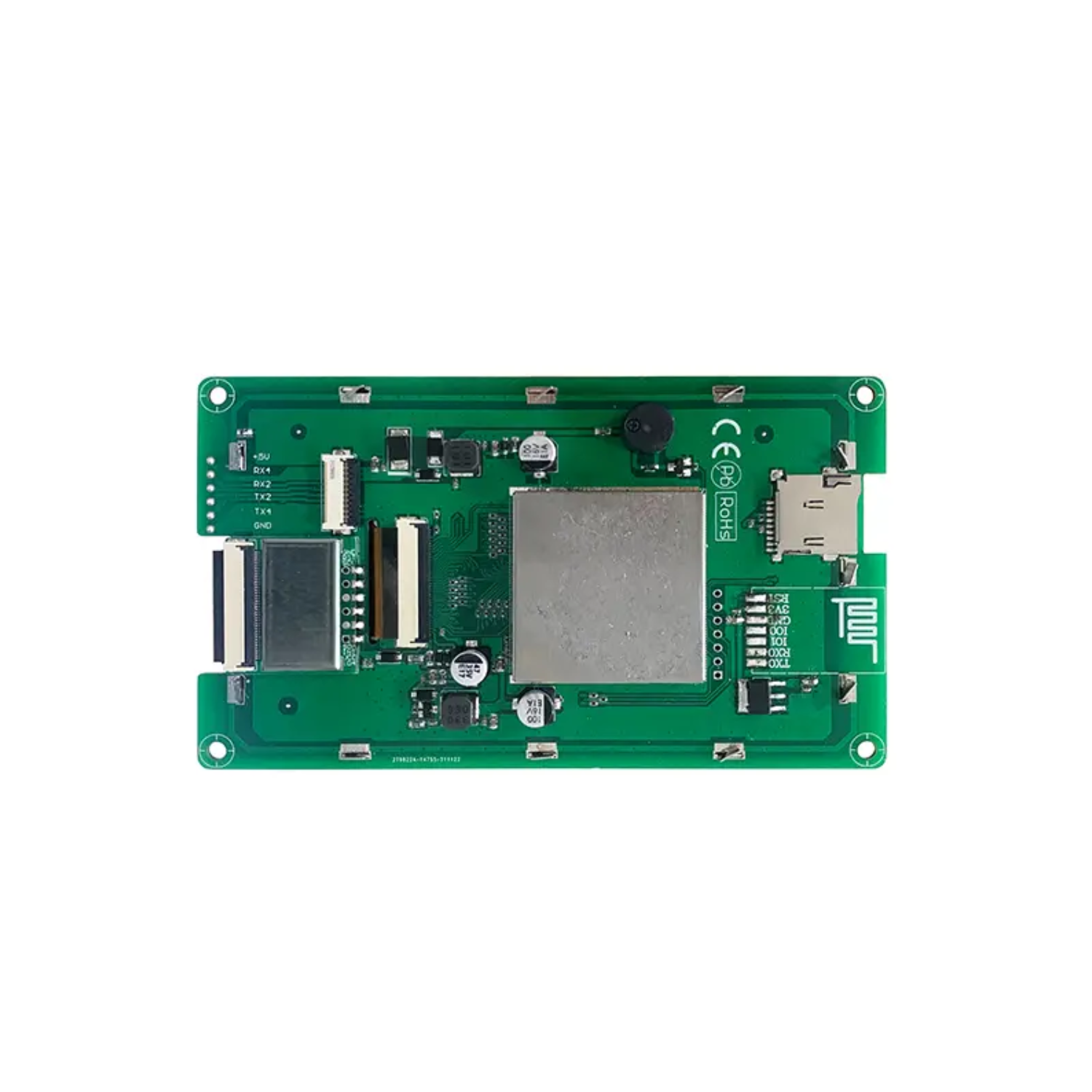

Product Interface:
- UART2 : N81 , 3.3V TTL/CMOS
- UART4 : Optional N81/E81/O81/N82 four mode , 3.3V TTL/CMOS
Package Included:
1 x DWIN DMG80480C043_01WTR HMI Display
DWIN Smart LCD Display Accessories (Need to purchase separately)
- DWIN HDL65011 8-Pin 2.0mm Pitch 20cm Connect Cable
- DWIN HDL65013 8 Way 2.00mm Board to Board Interconnect Cable
- Kingston 32GB Micro SD Card With SD Card Adapter
- DWIN FCC1015A Cable 10Pin 1.0mm Pitch FFC Cable
- DWIN HDLUSB USB Male A-A Cable
- DWIN HDL662B USB To Serial FFC Adapter
- DWIN HDL662S Debugging Board
