- Using Voltage: AC 110V
- Maximum power: 10000W (connected resistive load) Long term
- operating power: 7000W
- Voltage Regulation: AC 0 - input
- supply voltage Size :( length) 111MM * (width) 77MM * 37MM (excludingHandle)
Description :
- Using Voltage: AC 110V
- Maximum power: 10000W (connected resistive load) Long term
- operating power: 7000W
- Voltage Regulation: AC 0 - input
- supply voltage Size :( length) 111MM * (width) 77MM * 37MM (excludingHandle)
How to use:
SCR regulator Connects to the front with the electrical circuit,Input and output lines Respectively Connect，do not need to Distinguish between Live Wire and Neutral Wire.Turn the potentiometer Rotating rod, Can play dimming,Speed Control,Regulator,thermostat Effect.
Application:
The use of new ultra-high-power two-way SCR,Resistive load can be adjusted between 0 ---- input voltage,For use with appliances.Such as: Electric furnace,Water heaters heat transfer,Lighting Dimmer,Large motor Speed Control and so on.Available for less than 10,000 watts of electric power (resistive load) of large electrical power Using due to the large, it is generally sufficient household appliances or small factories using.
Note:
Must Pay attention to the temperature rise when using in the first time, if it exceeds 80 °C,please enhance heatsink,or would burn out module and load.The power must leave 2/3 margin when connect to inductive load or Capacitive load.
Features :
- 1 trigger circuit voltage regulator IC control
- 2 SCR special increase dual protection varistors and RC snubber circuit。
- 3. Add intelligent temperature control fan to improve the cooling effect Wide
- application: electric furnace, water heater, lamps, small motor, electric iron etc
Package Included：

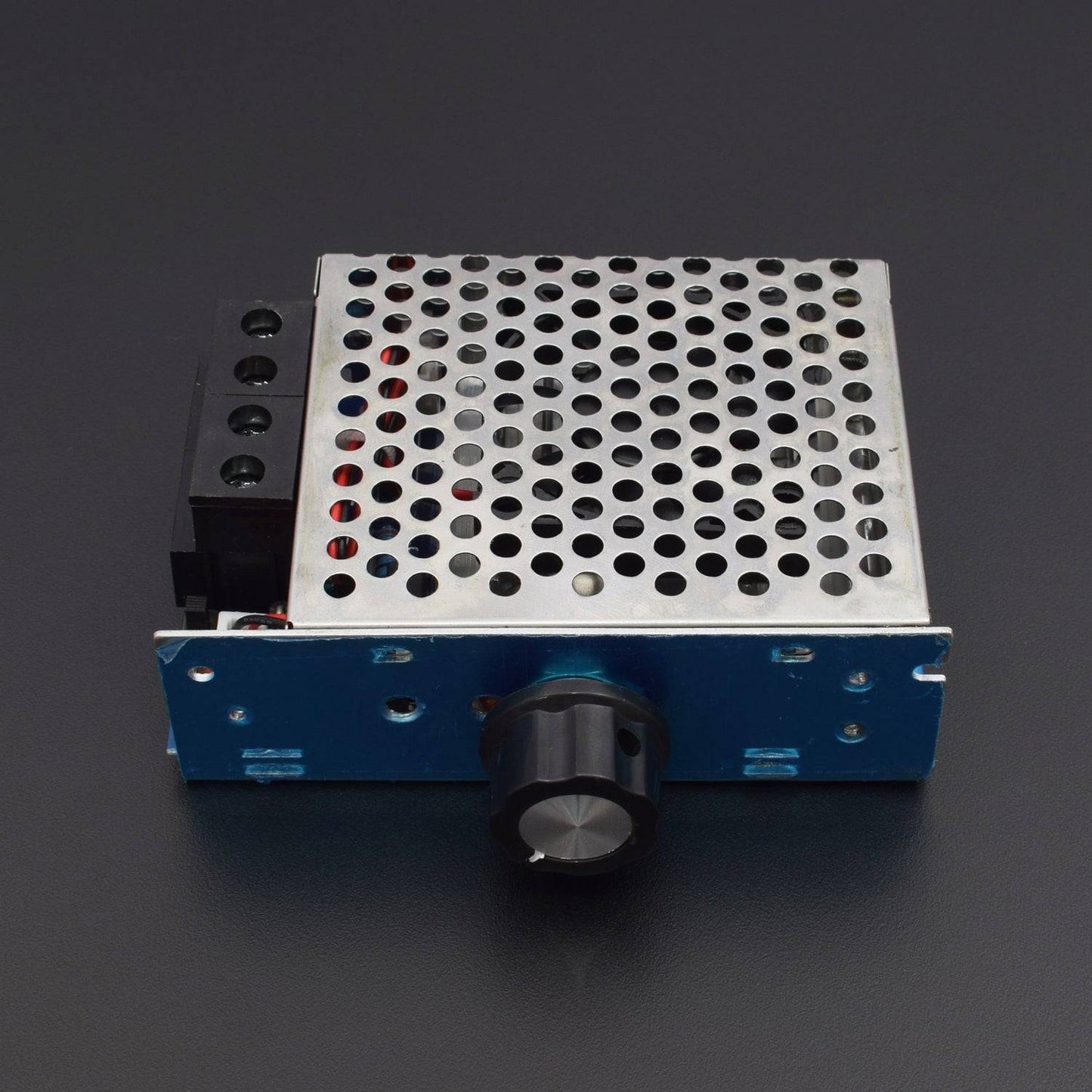

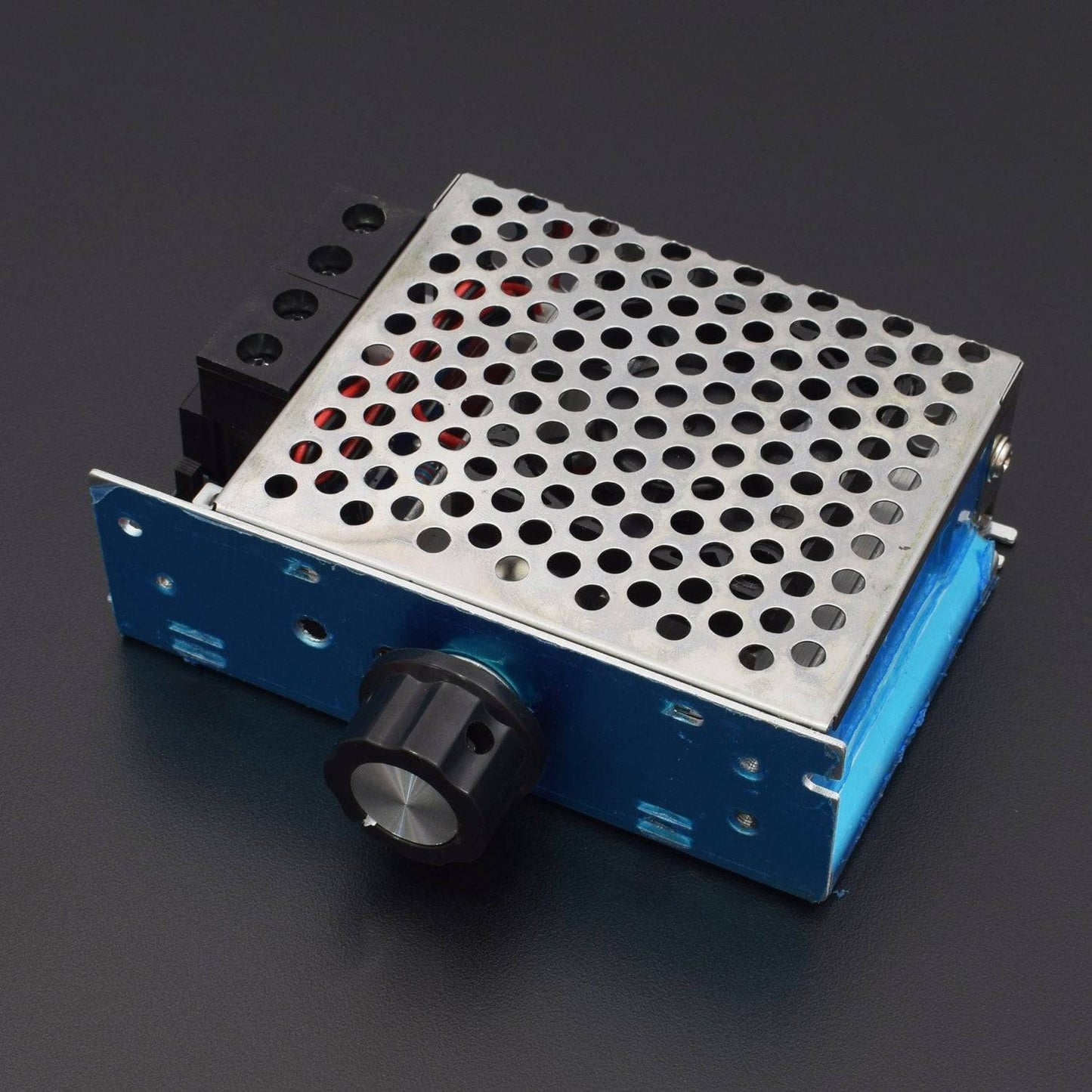

1x AC 110V SCR Super High Power 10000W Electronic regulator
