Description:
ABS L:
High-efficiency 60V to 36V Waterproof Buck Converter for demanding applications. This robust DC-DC converter features exceptional performance with >97% efficiency and low ripple. Ideal for solar motor systems, it supports 3A/5A output currents, delivering 108W/180W of power. Designed for harsh environments, it boasts IP67 waterproof rating, wide operating temperature range, and compact size.
Aluminium L:
Rugged and efficient waterproof DC-DC converter designed for solar motor applications. Converts 60V DC input to a stable 36V DC output with 8-13A current capability. Features low ripple, high efficiency and operates reliably in temperatures from. IP67 rated for dust and water resistance.
Aluminium XL:
This high-efficiency, IP67 waterproof DC-DC converter reliably steps down 60V DC input to a stable 36V DC output, delivering up to 900W of continuous power with over 97% efficiency. Designed for demanding applications, it features an aluminum XL shell for durability and operates across a wide temperature range. With low ripple and minimal no-load current, this compact converter is ideal for powering solar motors, industrial equipment and other applications requiring a reliable and efficient power solution
Specifications:

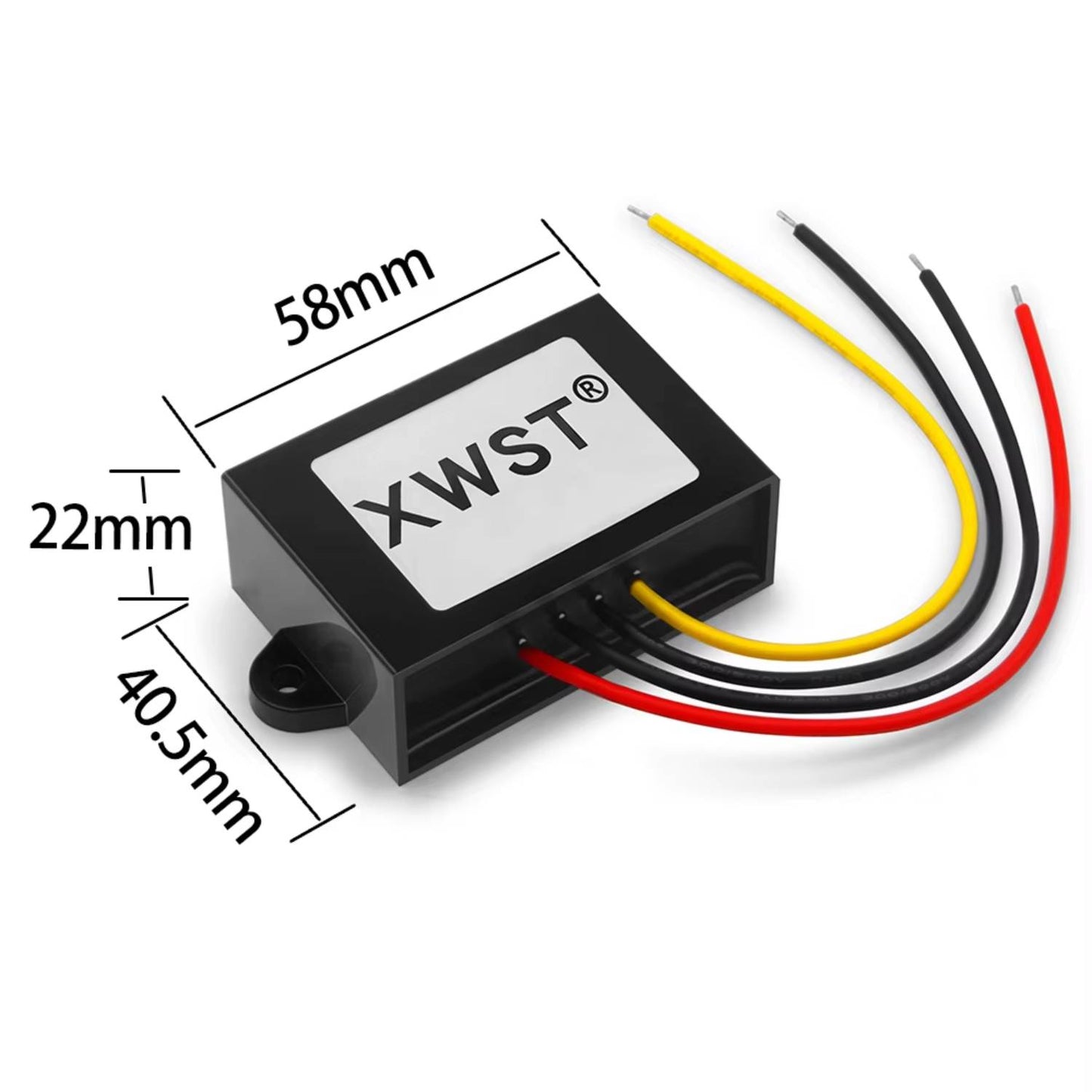

ABS L:
- Model: XW-4860-36
- Material: Aluminum/Plastic
- Input Voltage: DC 60V
- Output Voltage: DC 36V
- Output Current: 3A/5A (available)
- Output Power: 108W/180W (available)
- Conversion Efficiency: >97%
- Ripple (Full load test): 60MV
- No-load current: 20MA
- Working Temperature: -40°C +80°C
- Waterproof Rating: IP67
- Shell: ABS L
- Size: 58*40.5*22MM

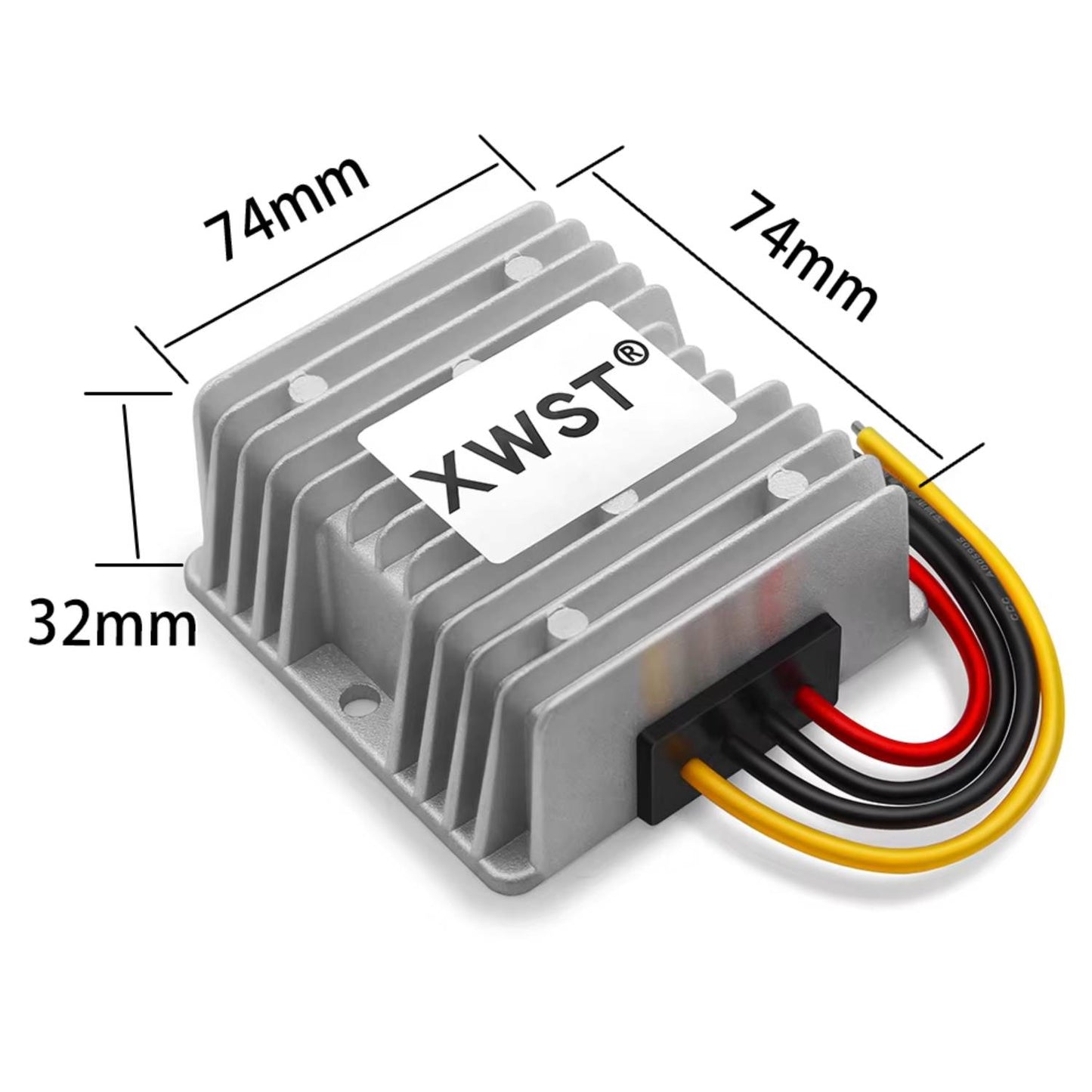

Aluminium L:
- Input Voltage: DC 60V
- Output Voltage: DC 36V
- Output Current: 8A-13A(available)
- Output Power: 288W-468W(available)
- Conversion Efficiency: >97%
- Ripple (Full load test): 160MV
- No-load current: 30MA
- Working Temperature: -40°C +80°C
- Waterproof Rating: IP67
- Shell: Aluminum L
- Size: 74*74*32MM

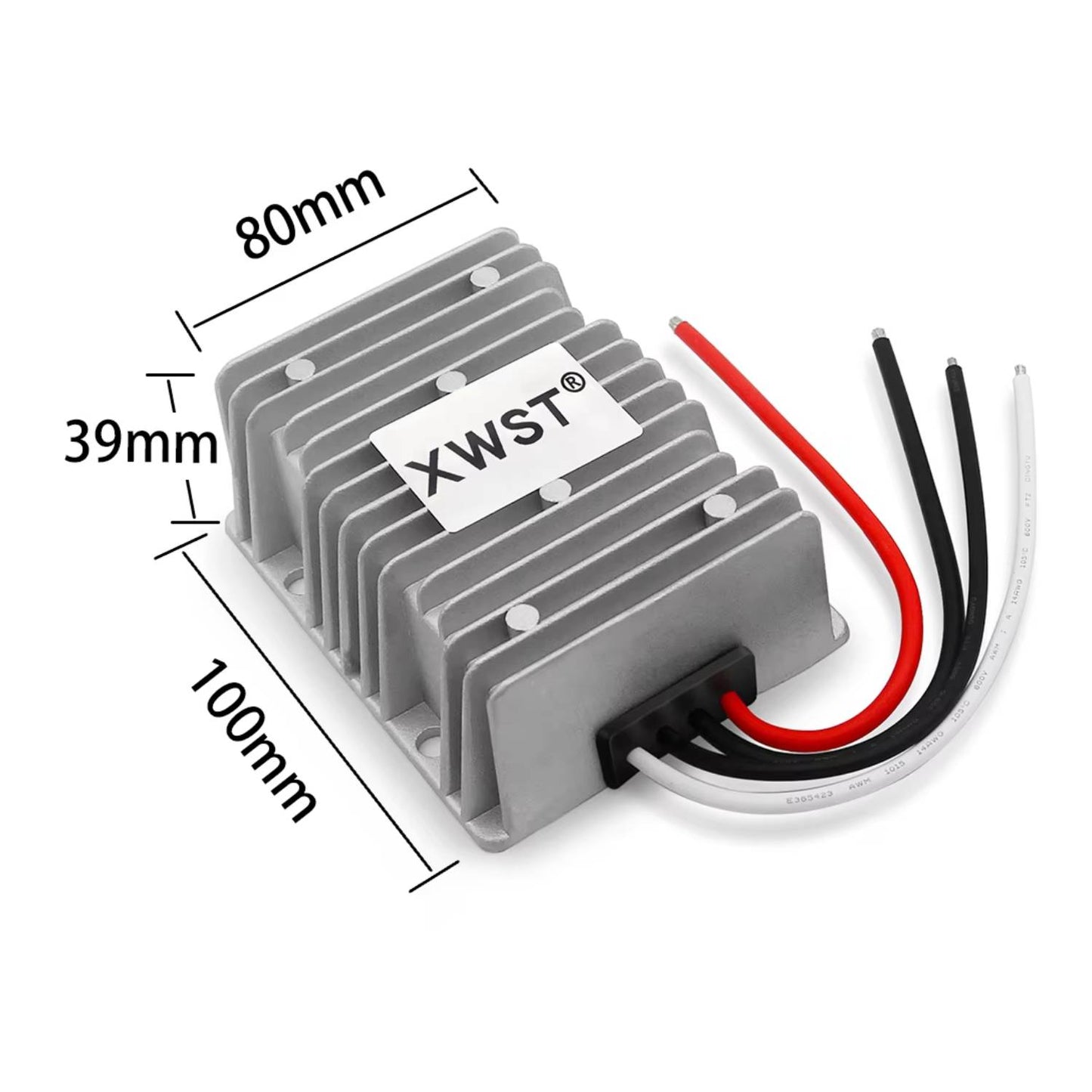

Aluminium XL:
- Input Voltage: DC 60V
- Output Voltage: DC 36V
- Output Current: 18A-22A-25A (available)]
- Output Power: 648W-792W- 900W(available)
- Conversion Efficiency: >97%
- Ripple (Full load test): 220MV
- No-load current: 40MA
- Working Temperature: -40°C +80°C
- Waterproof Rating: IP67
- Shell: Aluminum XL
- Size: 100*80*39MM
Package Included:
- 1 x XWST XW-4860-36 60V to 36V Waterproof Buck Converter
