Description:
The USB-to-USB isolator module supports USB control transmission, stacking transmission, interrupt transmission, one-step, and synchronous transmission. The insulation voltage of the USB to USB isolator module is 15V without an external power supply and driver.
The USB insulation module is compatible with USB 2 and provides complete isolation data rates of 1.5Mbps and 12Mbps. The USB-to-USB isolator module is suitable for working environments with high currents and strong interference, noise-sensitive areas, USB debugging devices, various industrial USB devices, and other common USB peripherals.
The USB to USB isolator module can protect the USB port from external strong power supply and strong signal interference, and protect the computer and USB port of the computer motherboard.
Specifications:
- Compatible With: USB 2.0
- ADUM3160 Isolation Voltage: 2500V
- Power Module Isolation Voltage: 1500V
- Using the Environment: - 40℃ to 85℃
Features:
- 12Mbps supports USB 1.5Mbps low speed and full speed does not support pure high-speed equipment
- Supports USB control transfer, bulk transfer, interrupt transmission, synchronous transmission, etc
- Power supply: from USB port to PC host
- Avoid driving, it is more convenient to use
Application:
- USB debugging device
- A variety of industrial USB devices
- Noise-sensitive areas etc
Pin Description:
Package Included:

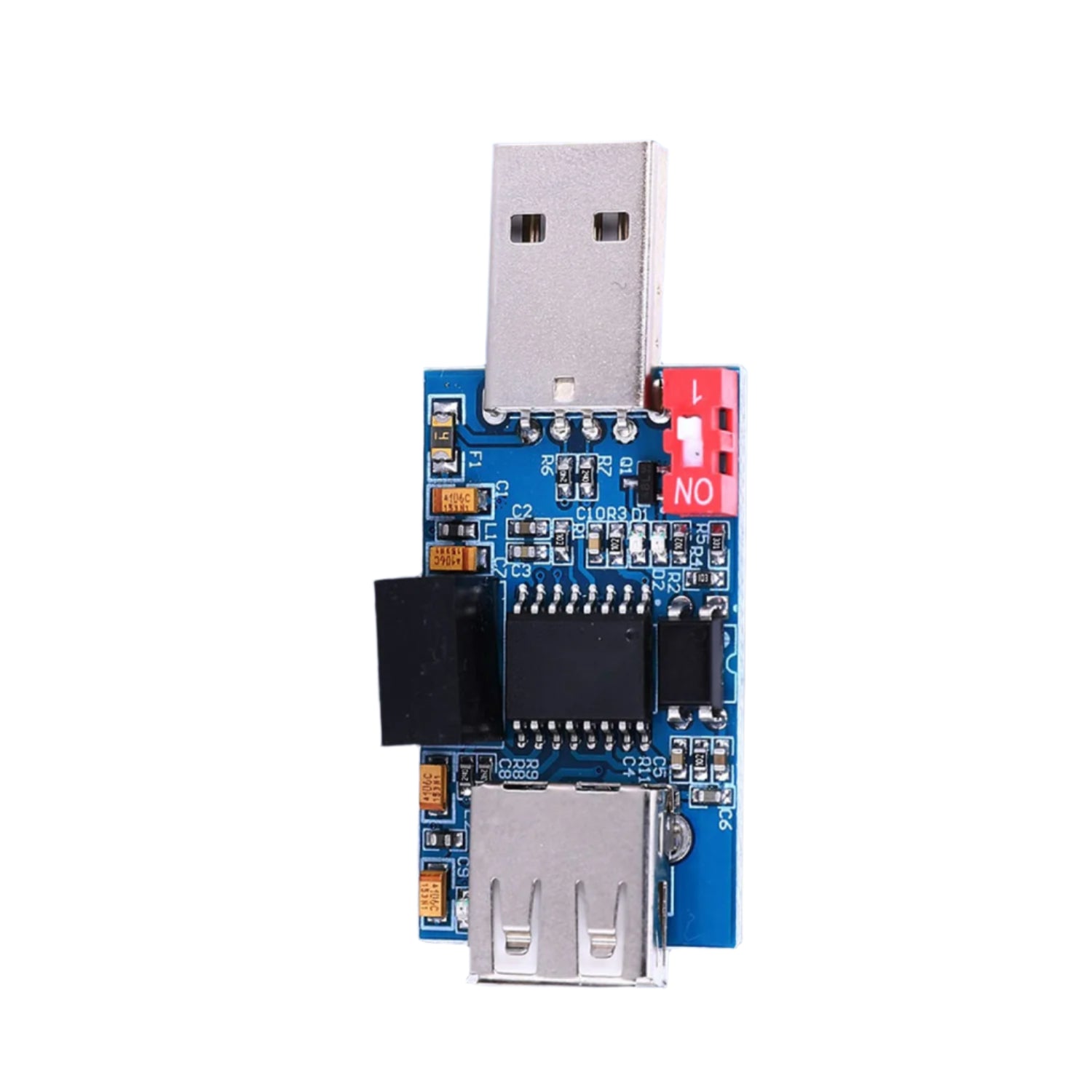

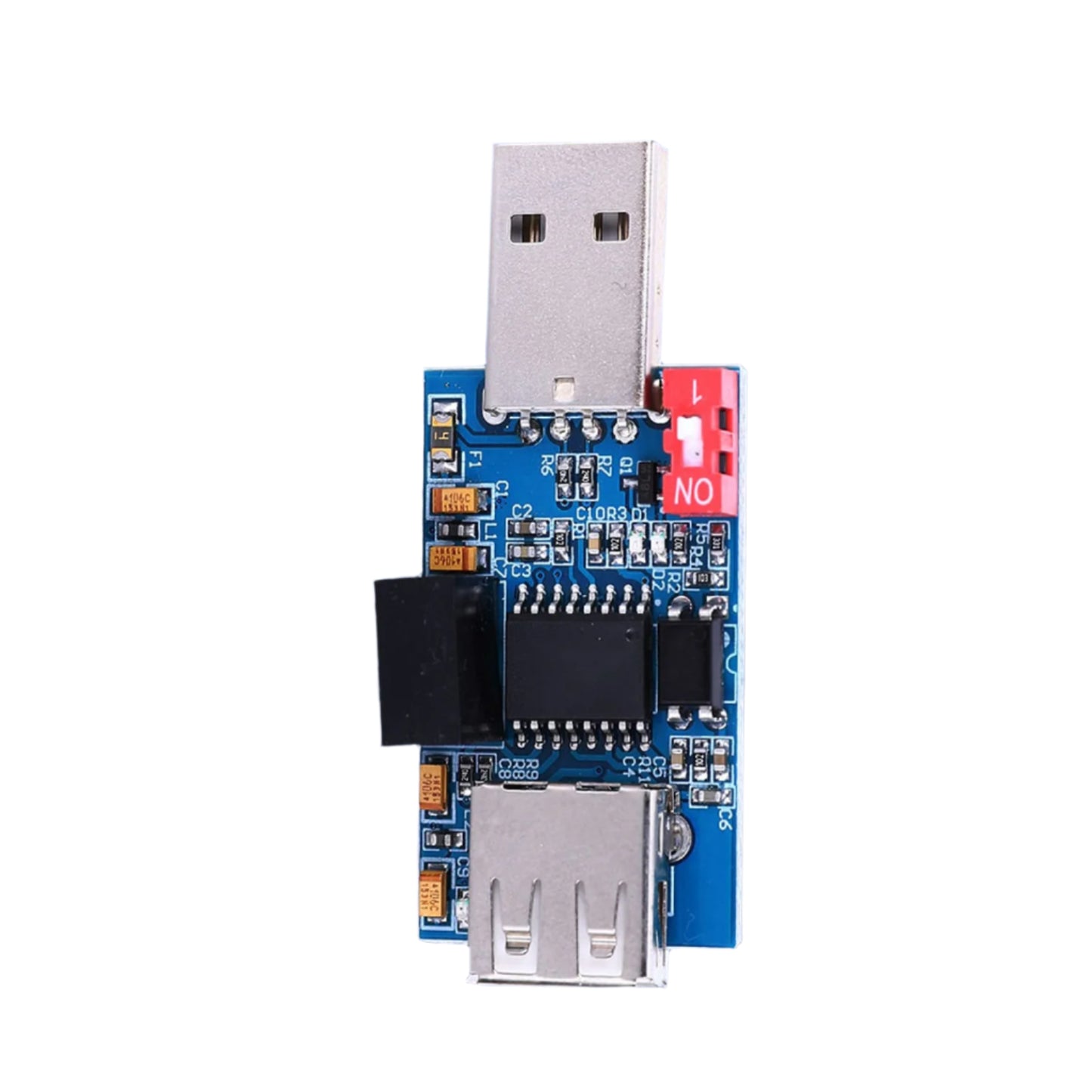

1 x 1500V USB to USB Isolator Board
